SiteHawk Kits
Pre-configured Test Sets
Need to quickly identify faulty antennas, cables and connectors to get your radio system back into service? Avoid the downtime and expense of trial and error of swapping components to fix your issue with a Bird SiteHawk Test Kit.
13 results
|
Sort by:
Filter
13 results
|
Sort by:
result
Showing 1 - 12 of 13 results
Included in SiteHawk Test Kits

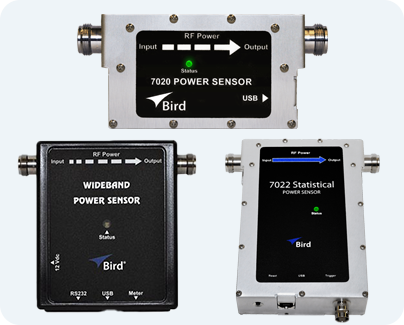

Pair your SiteHawk with a Sensor
Bird sensors are the standard for RF power measurement. Using the RF Meter app included with your SiteHawk, your test kit allows you control and take measurements from any compatible Bird sensor, not just the one included with your kit.
| Sensor | Frequency Range | Power Range |
| 5017D | 25 MHz to 1.0 GHz | 500 mW to 500 W |
| 5019D | 25 MHz to 1.0 GHz | 100 mW to 100 W |
| 7020-1-010101 | 350 MHz to 4.0 GHz | 0.15 W to 150 W |
| 7020-1-030301 | 25 MHz to 1.0 GHz | 0.5 W to 500 W |
| 7022-1-020201 | 350 MHz to 6.0 GHz | 0.25 W to 500 W |
Included in SiteHawk Test Kits
Measurement Flexibility Out of the Box

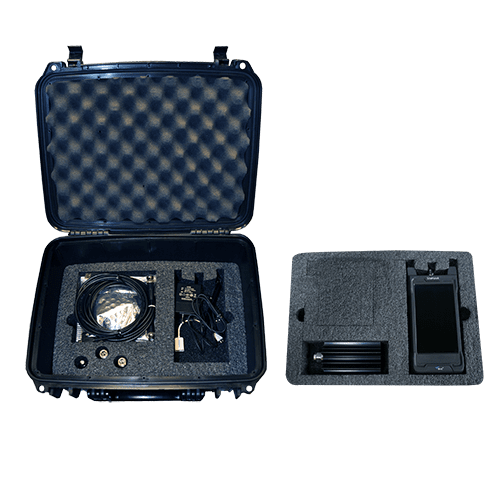

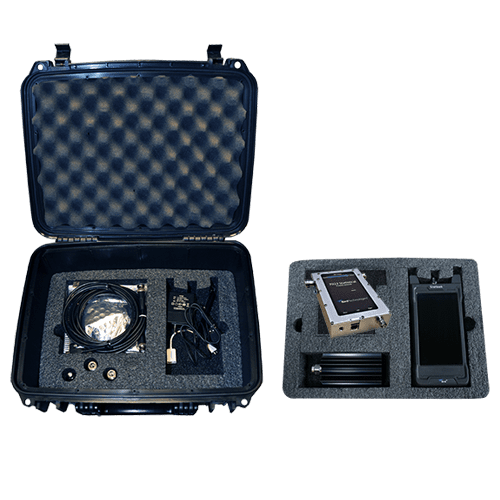

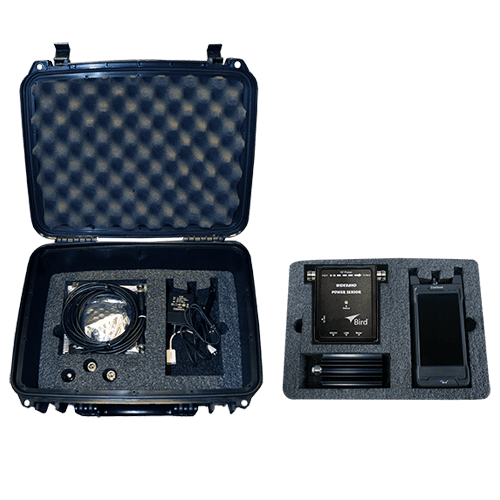

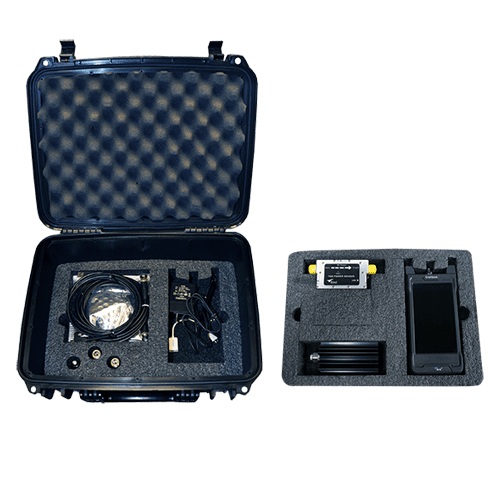

Each SiteHawk Test kit includes:

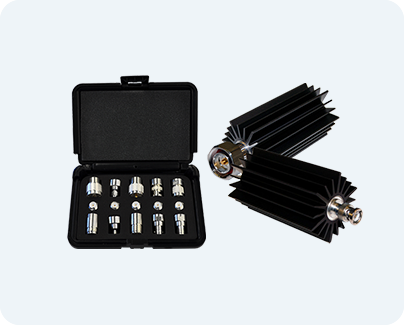

- A 4240-401 Adapter kit, allowing adapting between male/female connectors of any: Type N, BNC, TNC, UHF, and SMA.
- A 25-T-MN Load, allowing safe dissipation of up to 25 W of RF energy as heat, cooled by convection.
Save Time & Save Effort
A SiteHawk Test Kit combines the cable and antenna analysis capabilities of the SiteHawk—measuring antenna match, determining cable loss, and identifying and locating faults with Distance-to-Fault—with commonly used adapters, an RF load, and an RF sensor for power measurement.
These essential capabilities prepare you to deal with an enormous range of RF system verification and troubleshooting, all in one durable carry case.
