For Real-World RF Demands

5000 Series

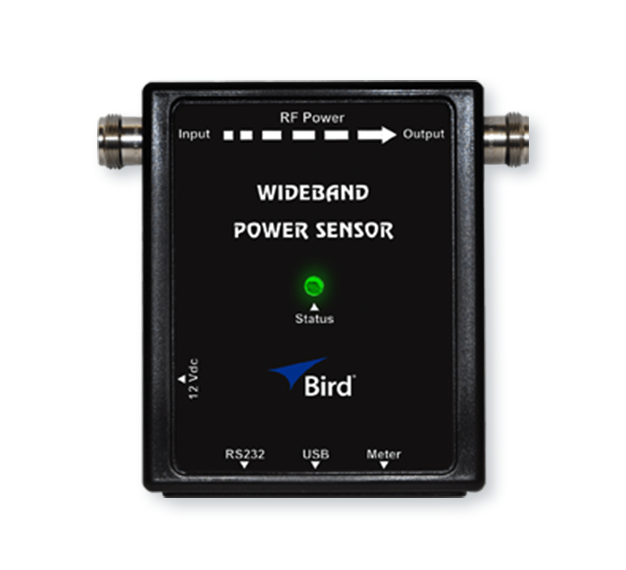

Wideband Power Sensors

From handheld radios to high-power broadcast systems, Bird’s 5000 Series Wideband Power Sensors give you the precision and flexibility to measure RF power with confidence—anywhere, any signal, any time.

Whether you’re verifying a base station, troubleshooting a DAS, or testing a tactical radio, accurate power measurement is the foundation of every decision you make in the field.

Buy Now View Datasheet

Why Choose the 5000 Series?

Unmatched Versatility

One sensor family handles it all—from 25 MHz to 4 GHz, and 150 mW to 1300 W peak. Whether you’re testing portable radios, DAS systems, or high-power transmitters, the 5000 Series adapts to your environment.

Field-Ready Accuracy

With ±4% accuracy and no field calibration required, you get lab-grade confidence in the field without delays, special tools, or uncertainty.

Modulation-Independent Insights

Measure true average, peak, and burst power across any analog, digital, or multi-carrier signal. Get key metrics like VSWR, return loss, crest factor, and CCDF—so you see the complete power picture, every time.

Compare Models

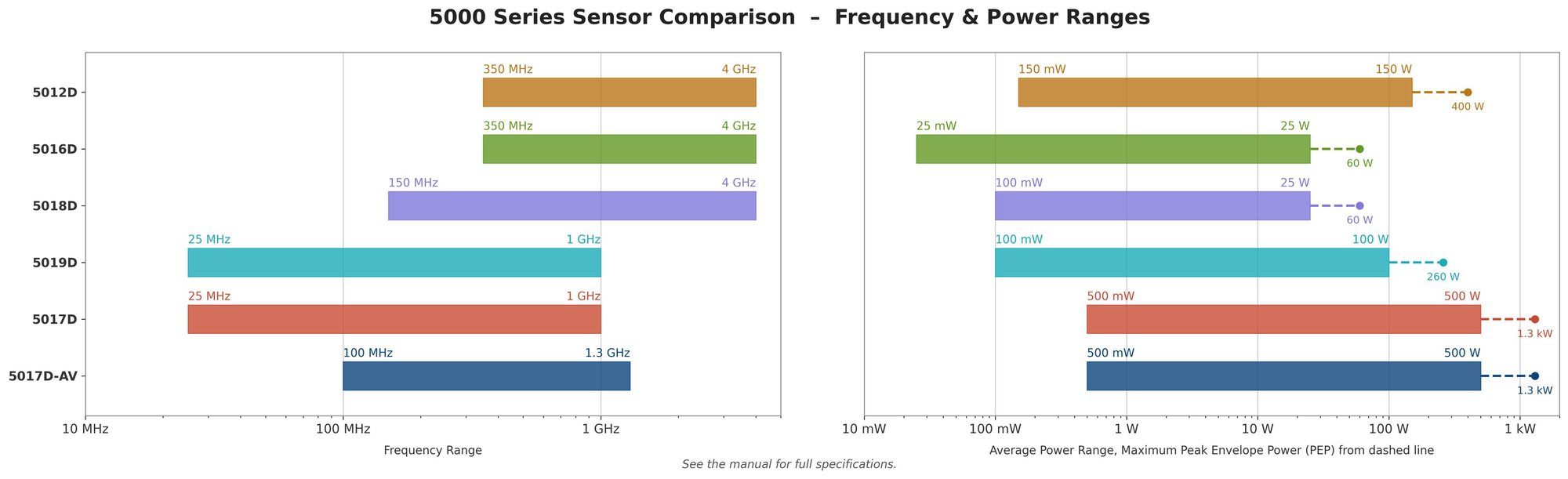

Use the chart below to compare frequency ranges, power handling, and key specs to find the sensor that best fits your needs.

Model Number

5012D request_button

350 MHz to 4.0 GHz

150 mW to 150 W Avg.,
400 W Peak

<1.05 from 0.35 to 2.5 GHz
<1.10 from 2.5 to 4 GHz

30 dB up to 3.0 GHz 28 dB from 3.0 to 4.0 GHz

Buy Now

5016D request_button

350 MHz to 4.0 GHz

25 mW to 25 W Avg.,
60 W Peak

<1.05

30 dB up to 3.0 GHz 28 dB from 3.0 to 4.0 GHz

Buy Now

5017D request_button

25 MHz to 1.0 GHz

500 mW to 500 W Avg.,
1300 W Peak

<1.05

29 dB 25 MHz to <50 MHz 30 dB from >50 MHz to 1000 MHz

Buy Now

5017D-AV request_button

100 MHz to 1.3 GHz

500 mW to 500 W Avg.,
1300 W Peak

<1.05 from 0.15 to 2.5 GHz
<1.10 from 2.5 to 4 GHz

28 dB up to 100 MHz 30 dB from 100 to 1300 MHz

Buy Now

5018D request_button

150 MHz to 4.0 GHz

100 mW to 25 W Avg.,
60 W Peak

<1.05 from 0.15 to 2.5 GHz
<1.10 from 2.5 to 4 GHz

30 dB up to 3.0 GHz 28 dB from 3.0 to 4.0 GHz

Buy Now

5019D request_button

25 MHz to 1.0 GHz

100 mW to 100 W Avg.,
260 W Peak

<1.05

28 dB up to 100 MHz 30 dB from 100 to 1000 MHz

Buy Now

Swipe for more

5000 Series FAQs

What types of power can these sensors measure?

Can I connect directly to a meter or computer?

What is the difference between Bird’s Wideband USB sensors and terminating sensors?

Complete the setup. Simplify the workflow.

Want the Full RF Measurement Solution?

Explore Bird's 5000B100 Series Digital Power Meter Test Kits.

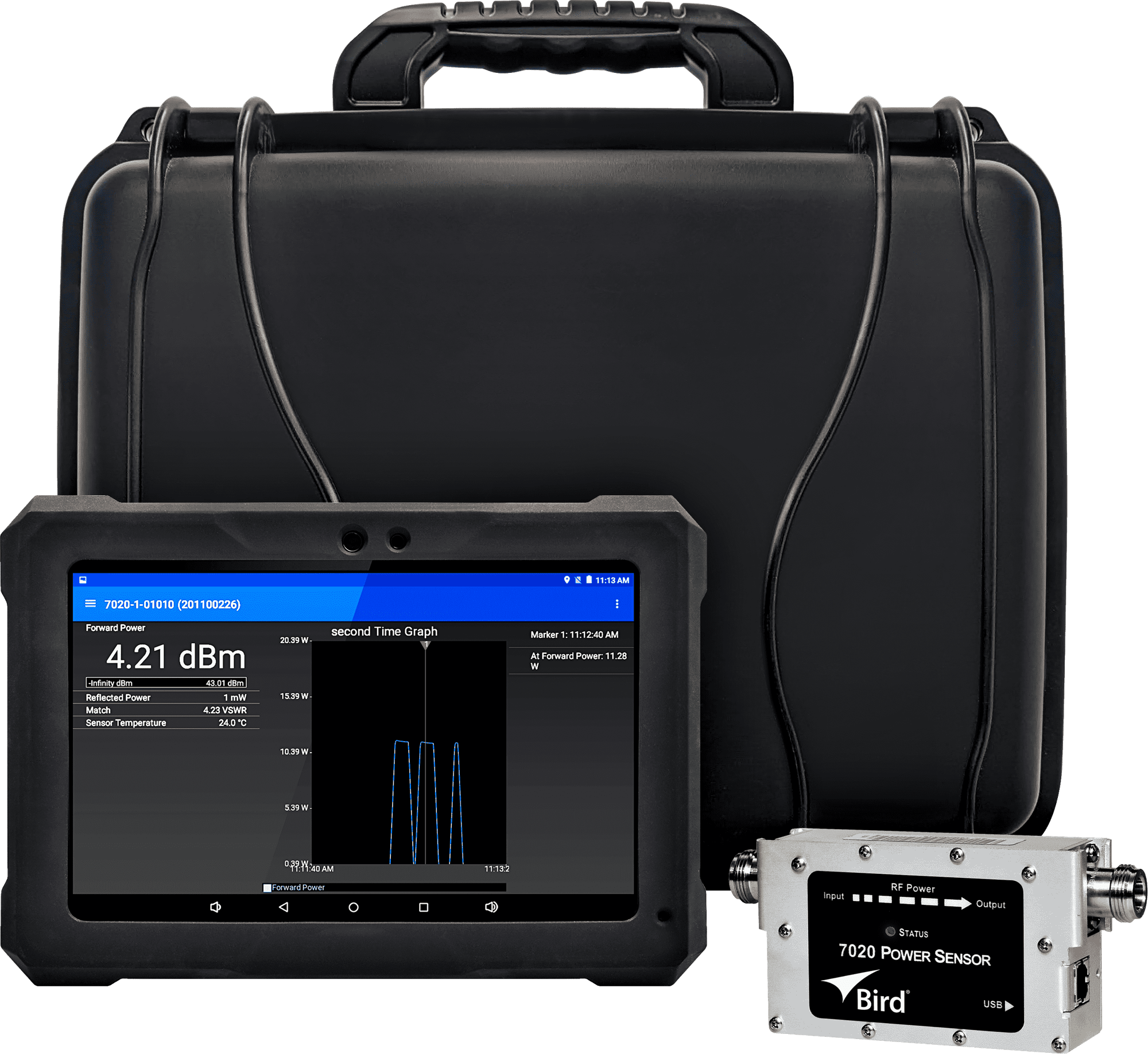

If you're considering the 5000-NG Display, take the next step with one of our complete RF power measurement kits—pairing the 5000-NG with high-performance Bird Wideband Power Sensors.

View Kits View 5000-NG Display RF Meter App

Measure What Matters.

The 5000 Series offers full-featured power measurement with average, peak, and burst analysis across wide frequency and power ranges.
Check out Bird’s other wideband RF sensors like:

7020 Series – Fast, essential power and VSWR measurements in a rugged, plug-and-play form factor.
7022 Series – Advanced diagnostics with statistical sampling and time-domain tools for complex digital signals like LTE, UMTS, and HDTV.

All backed by Bird’s legacy of precision, simplicity, and trust in the field.

Explore the lineup. Compare your options. And start measuring with confidence.

5000 Series

Wideband Power Sensors

Why Choose the 5000 Series?

Unmatched Versatility

Field-Ready Accuracy

Modulation-Independent Insights

Compare Models

5000 Series FAQs

What types of power can these sensors measure?

Can I connect directly to a meter or computer?

What is the difference between Bird’s Wideband USB sensors and terminating sensors?

Want the Full RF Measurement Solution?

Resources

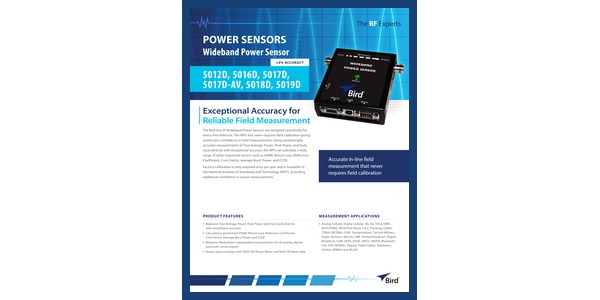

Wideband Power Sensor Datasheet

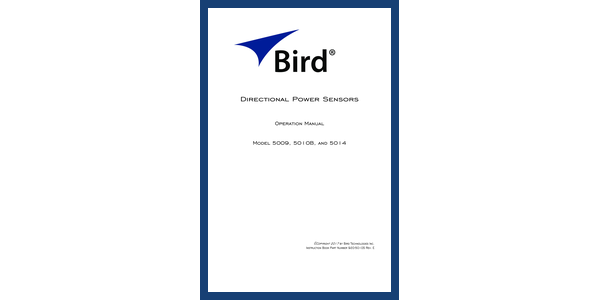

Directional Power Sensor Manual

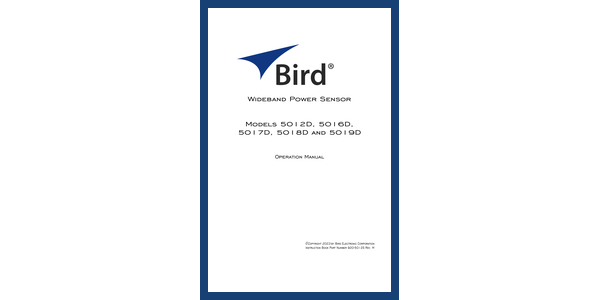

Wideband Power Sensor Manual
