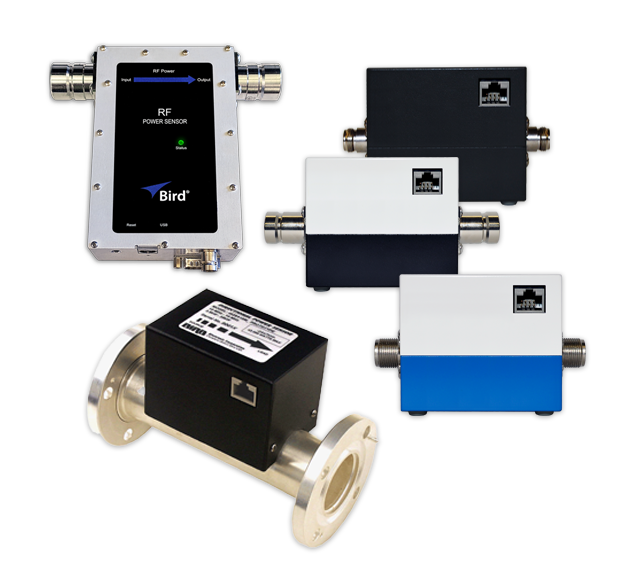

Precision RF Power Sensor Family

When accuracy is critical, Bird’s Precision CW and Pulsed RF Sensors deliver. Built for semiconductor fabs, test labs, and precision manufacturing, they combine metrology-grade performance with real-world durability and easy integration.

With accuracy options of ±3%, ±1%, or ±0.5%, each sensor is NIST-traceable and supports both CW and pulsed signals. Advanced features like gated time-domain analysis and microsecond-level resolution give you the flexibility and confidence to handle today’s calibration demands—and tomorrow’s.

Two Sensor Families.
One Standard of Trust.

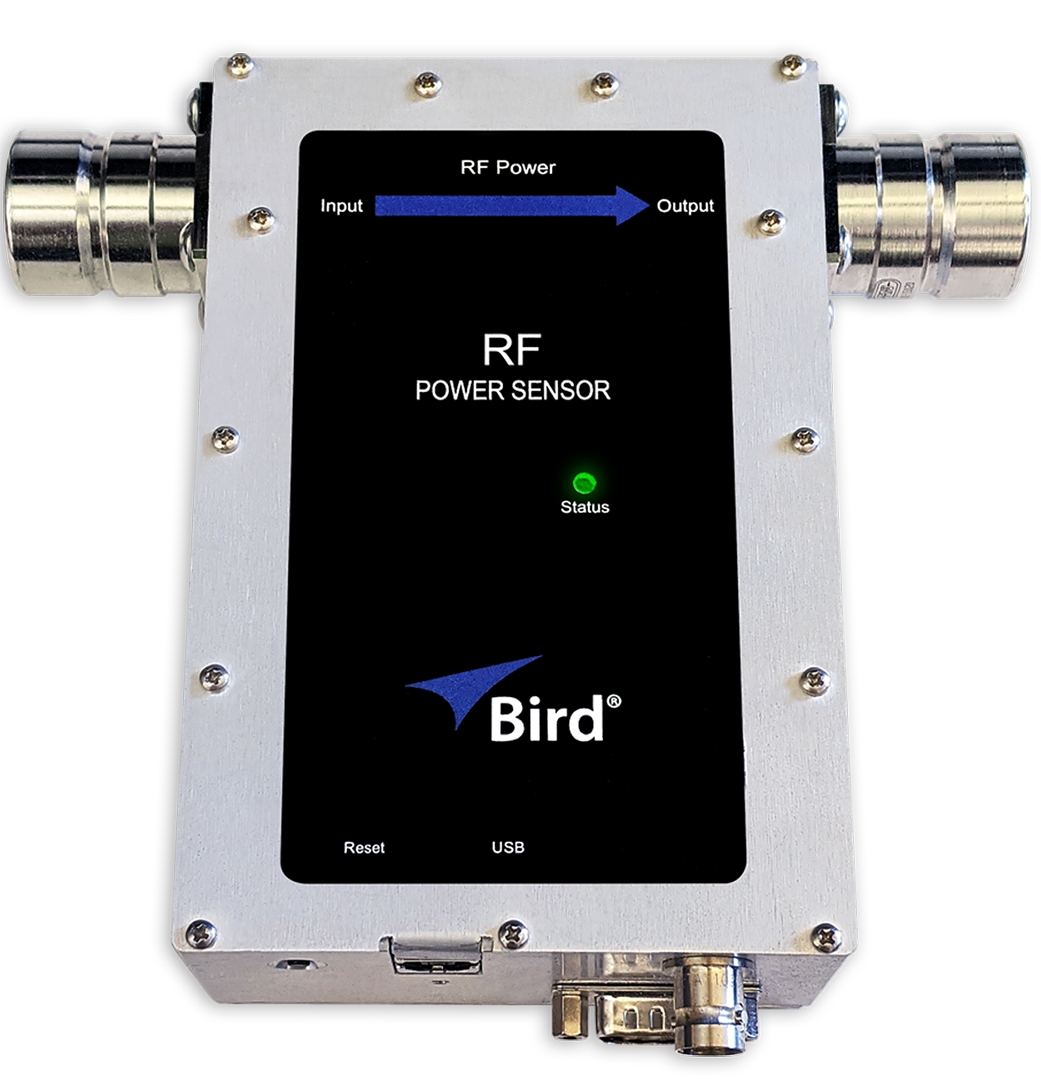

One Sensor, All Signal Types

Pulsed & CW
RF Sensors

For engineers working with—or moving toward—more complex RF waveforms, Bird’s CW + Pulsed sensor family provides the added flexibility to handle dynamic signals with confidence. These sensors bring advanced measurement capabilities like time-domain analysis and pulse insight, helping you stay ahead of process changes while protecting your long-term investment.

7027-7037-pulse-power-sensor
Reliable. Focused. Fab-Test Proven.

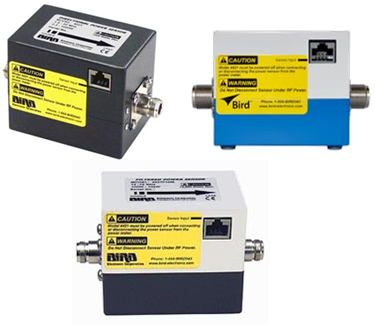

CW-only
RF Sensors

Bird’s CW-only sensors are the trusted standard for straightforward, high-accuracy RF power measurements in stable, continuous-wave applications. Perfect for fabs running fixed-frequency or frequency-agile tools, these sensors deliver consistent, repeatable performance with the simplicity and ruggedness you need for everyday calibration and monitoring.

4027A-Series-Continuous-Wave-Power-Sensor_white
bottom-tech-pattern-light

Compare. Choose. Calibrate.

Use this quick-reference guide to select the sensor that meets your fab’s performance and future-proofing goals.

Model Series
Accuracy
Signal Type
Key Features
Best For
Learn More

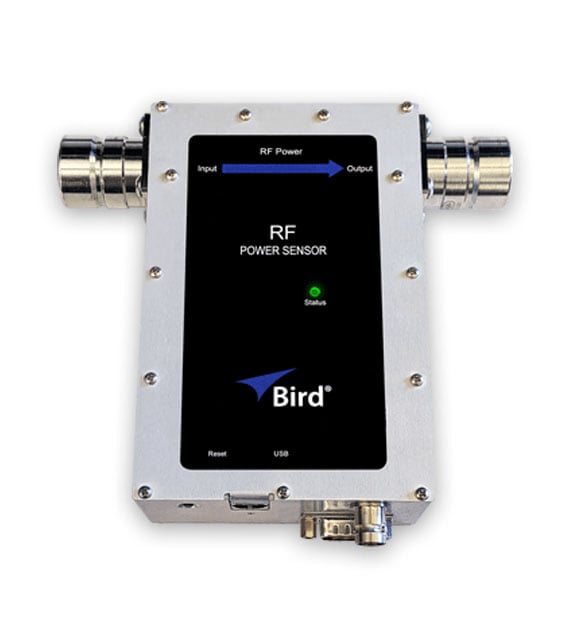

7037/7039 button_text
±0.5%
across entire
power range
CW and Multi-State Pulsed RF Power Sensor
Highest accuracy, NIST-traceable, 4 multi-level pulsed waveforms, average and gated power measurements, time-domain, pulse resolution down to 1 µs, SCPI automation
High-precision etch and deposition applications, metrology labs.
7027/7029 button_text
±1.0%
across entire
power range
CW and Multi-State Pulsed RF Power Sensor
NIST-traceable, 4 multi-level pulsed waveforms, average and gated power measurements, time-domain, pulse resolution down to 1 µs, SCPI automation
Semiconductor fabs, tool calibration and process control

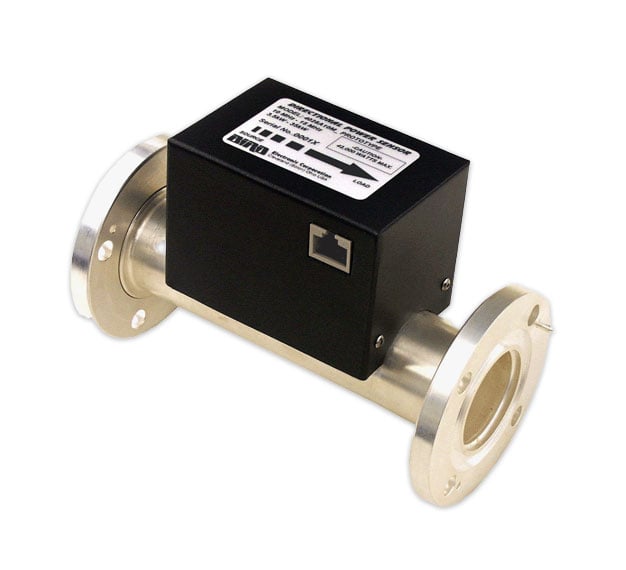

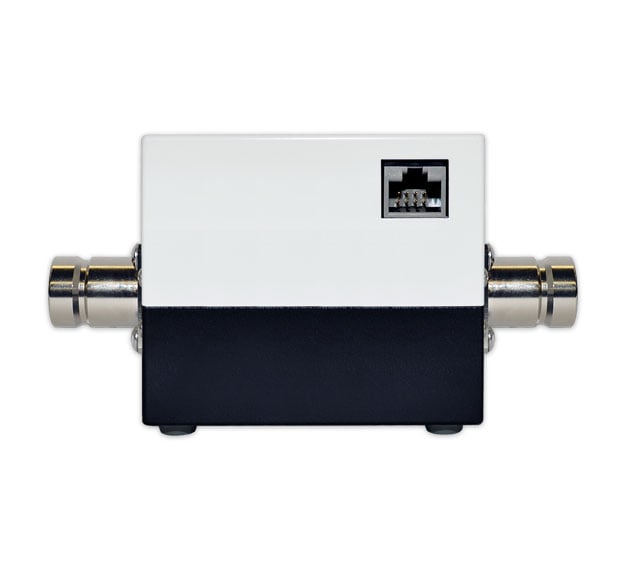

4027A/4027F/4028 button_text
±1.0% at 1700 W
±2.0% across
other power levels
CW only
Simple, accurate CW power sensors tailored to specific ISM or fab frequencies.
Calibration of CW RF sources.

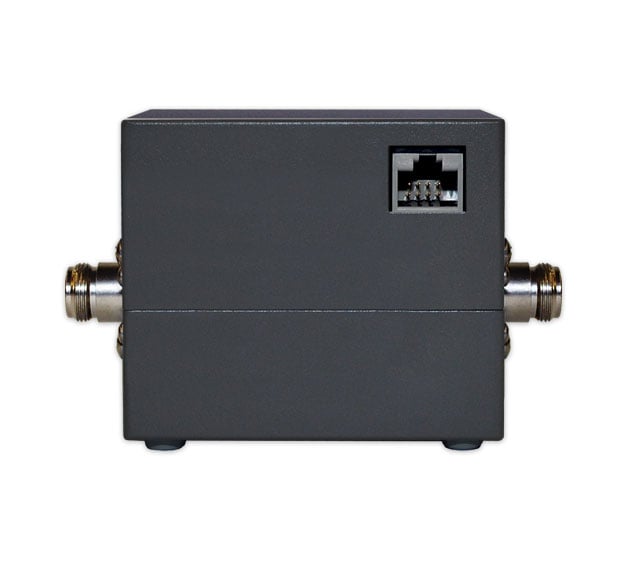

±3.0%
across entire
power range
CW only
Rugged design, ease of use, broad frequency ranges.
Routine fab RF power supply checks, maintenance, field use, or cost-sensitive lab setups
  Swipe for more

Trusted by Semiconductor Innovators

Bird’s industry-standard RF power measurement tools are trusted by global semiconductor firms to ensure high-yield chip production.

Let’s match your fab’s needs with the right solution.

Your RF Measurement Partner—Today and Tomorrow

Choosing the right sensor is about more than specs—it’s about ensuring long-term stability, protecting yield, and staying ahead of what’s next in semiconductor manufacturing. Whether you’re performing routine tool checks, validating RF generators, or adapting to more complex signal demands, Bird offers a precision RF sensor solution you can count on.

With decades of leadership in RF measurement, we’re here to help you find the right fit—and support you every step of the way.
