Bird RF Meter allows you to control and analyze measurements from your Bird USB power sensors from Windows and Android Devices.
RF Meter allows you to access the full functionality of sensor on both Windows and Android devices. It offers a data table, graphing, sensor configuration, and data logging capabilities. Simply connect your sensor via USB and you're ready to take measurements without extra calibration, driver downloads, or configuration.
See Compatible SensorsForward and Reflected True Average Power, VSWR, Peak Power, Crest Factor, CCDF, and Burst Power (sensor dependent).
Time & Bar graphs, customizable data logging with automatic saving.
Simply connect your Bird USB Sensor and start taking data, no other installs required.

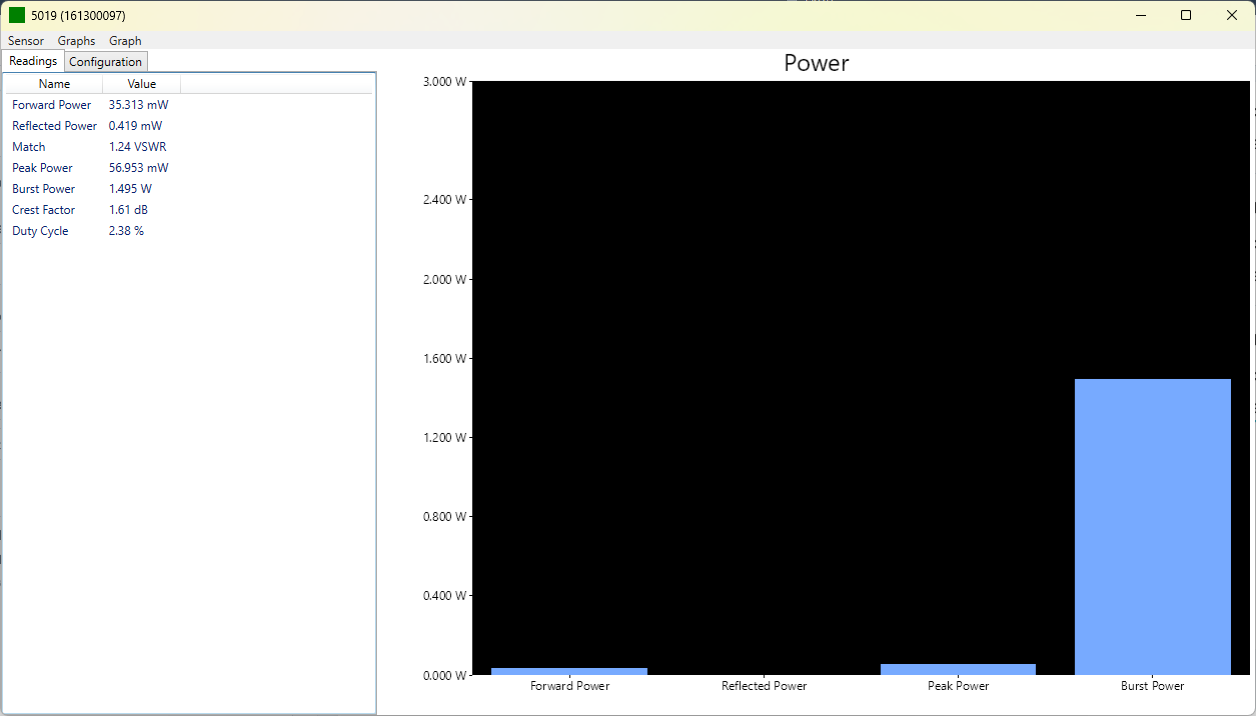

RF Meter for Windows allows control of your Bird USB power sensors from your laptop or desktop.

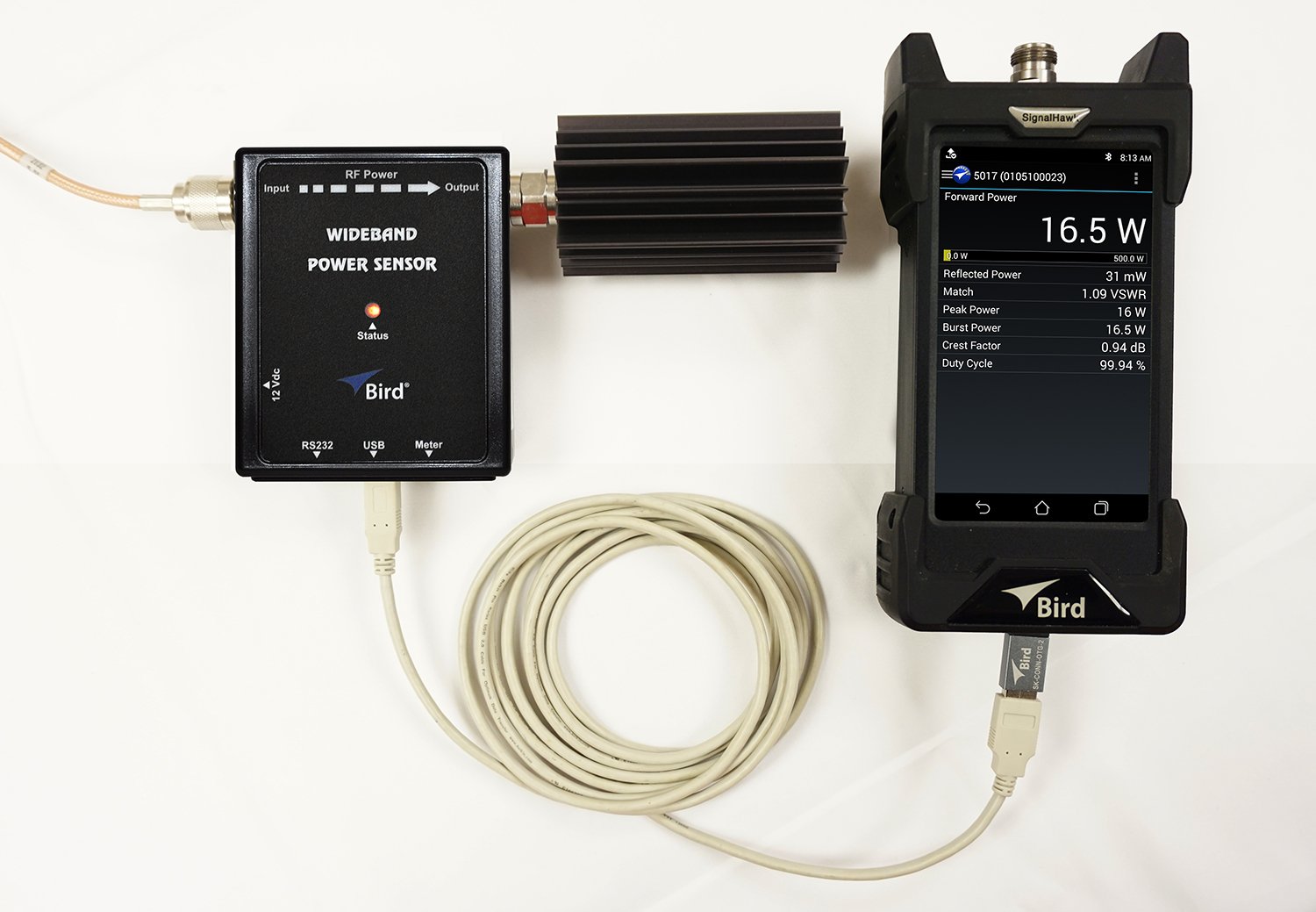

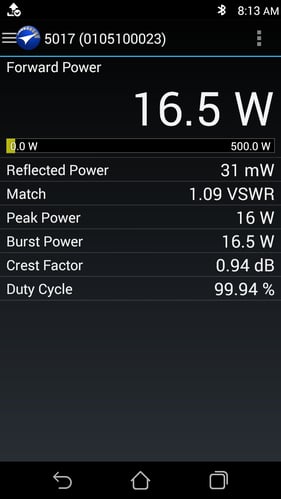

RF Meter for Android allows control of your Bird USB power sensors from your Android-based phone or tablet. This version is included with Bird Power Meter Displays, SiteHawks, and SignalHawks.
RF Meter is compatible with Bird 5000, 7020 and 7022 Series sensors.
Bird Power Viewer Software supports Bird 7027 and 7027 families of pulse sensors.
For other sensors, or for programmatic control of your sensors or integration into larger workflows, check out the code examples on Bird's GitHub.
Bird RF Meter software ensures you have easy access to control your Bird sensors, and gather and analyze data from them. With versions for both Windows and Android devices, you can carry analysis capabilities with you wherever you are.
The Bird RF Meter app turns a compatible Windows computer or Android device into a control and display interface for Bird USB power sensors. It supports measurements such as forward and reflected average power, VSWR, peak power, and burst power, depending on the connected sensor.
For example, a technician can connect a compatible sensor to a laptop, monitor a transmitter producing 50 W, and log power measurements over a 30-minute test.
Not always. Many Bird test instruments operate as stand-alone devices using their built-in displays and controls. Compatible USB power sensors can use Bird RF Meter for sensor configuration, measurements, graphing, and data logging, while Bird Power Viewer supports designated pulse power sensors.
For example, a compatible USB sensor can connect directly to a Windows 10 or 11 computer and display power measurements through RF Meter without requiring a separate power meter display.
