7022

Statistical RF Power Sensor

Modern RF signals aren’t simple anymore. With burst transmissions, wide dynamic ranges, and complex digital modulation, average power alone doesn’t give you the insight you need.

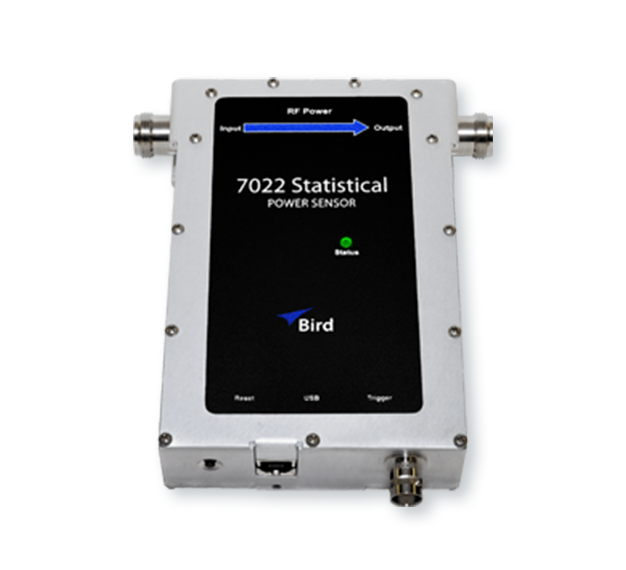

The Bird 7022 Statistical RF Power Sensor is built for exactly this reality—giving you a deeper view into how your signal behaves over time. With statistical sampling, time-domain diagnostics, and true average power in one rugged, field-ready device, this sensor helps you measure what truly matters.

From troubleshooting digital distortion to validating system performance under dynamic loads, the 7022 gives you the detail that standard sensors miss.

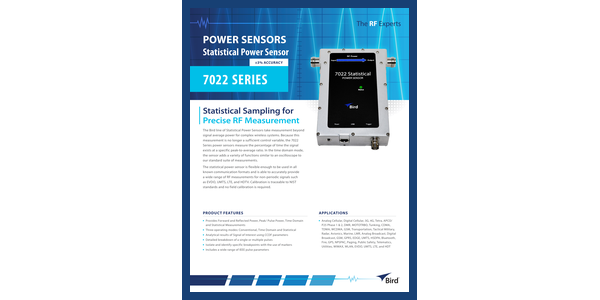

Buy Now View Datasheet

Why Choose the 7022 Series?

Advanced Statistical Insight

Measure in conventional, time domain, and statistical modes to gain needed performance data for complex signals.

Ready When and Where You Are

With no field calibration required and simple USB connectivity, the 7022 Series is always ready for action. Just plug in, take your reading, and move on.

Optimized for Non-Periodic Signals

Accurately measure signals like EVDO, UMTS, LTE, and HDTV where traditional RF meters fall short.

Specifications

Model Number

7022-1-020201 request_button

350 MHz to 6.0 GHz

0.25 W to 500 W Avg., 1500 W Peak

Buy Now

Swipe for more

7022 Operating Modes

Conventional

Standard RF power measurements

Accurate forward and reverse average power measurements across a 33 dB dynamic range.

Provides for measurements of antenna and transmission system performance such as VSWR and return loss.

Time Domain

Oscilloscope-like analysis

Measures power-versus-time characteristics of waveforms, parameters like average burst power and peak power can be determined.

Internal and external trigger options are also available, with trigger hold-off, level, and delay settings available as well.

Statistical

Insights for complex digital modulations

Measures the percentage of time that a particular waveform exists at a specific value of peak-to-average power.

Signals like Wi-Fi, WiMAX, Next Generation Public Safety Communications (APCO P25 Phase 2 and LTE), and GSM-R all employ complex modulation schemes that benefit from this measurement.

Download the Tech Brief Get Expert Help

Complete the setup. Simplify the workflow.

Want the Full RF Measurement Solution?

Explore Bird's 5000B100 Series Digital Power Meter Test Kits

If you're considering the 5000-NG Display, take the next step with one of our complete RF power measurement kits—pairing the 5000-NG with high-performance Bird Wideband Power Sensors.

View Kits View 5000-NG Display RF Meter App

Measure What Matters.

The 7022 Series offers advanced diagnostics with statistical sampling and time-domain tools for complex digital signals like LTE, UMTS, and HDTV.
