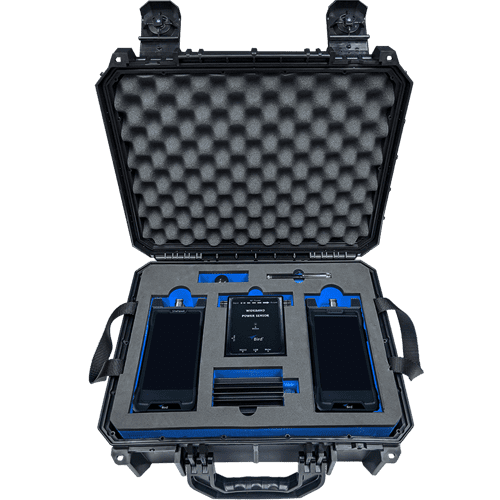

Bird's Master Kits provide all the necessary equipment needed for field technicians and engineers for installation, troubleshooting, and maintenance of coaxial cable and antenna systems and analysis of system performance.
5 results
|
Sort by:
Filter
5 results
|
Sort by:
result
Showing 1 - 5 of 5 results
Included in RF Master Kits

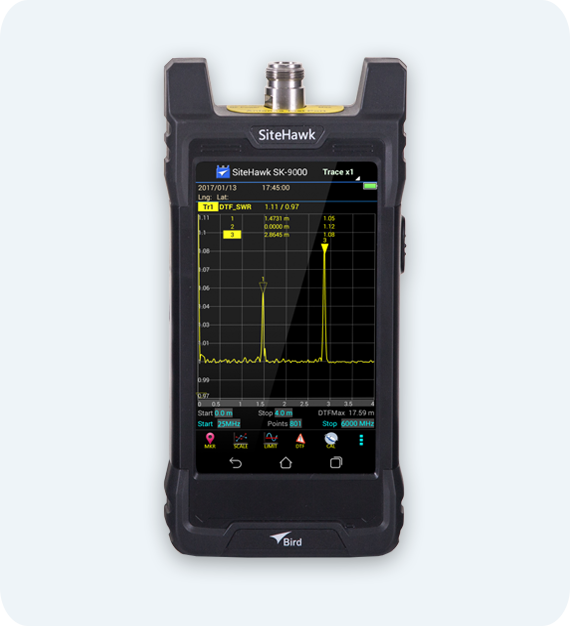

SiteHawk
Cable & Antenna Analyzer
The Bird SiteHawk® gives you the power to find cable and antenna faults fast—without guesswork. Designed for field reliability and trusted by technicians around the globe, it puts simple, accurate diagnostics right in your hands, helping you fix problems quickly and keep critical operations online.
The only difference between SiteHawks is the maximum analysis frequency, being 6 GHz or 9 GHz for the SK-6000-TC or SK-9000-TC respectively.
Included in RF Master Kits

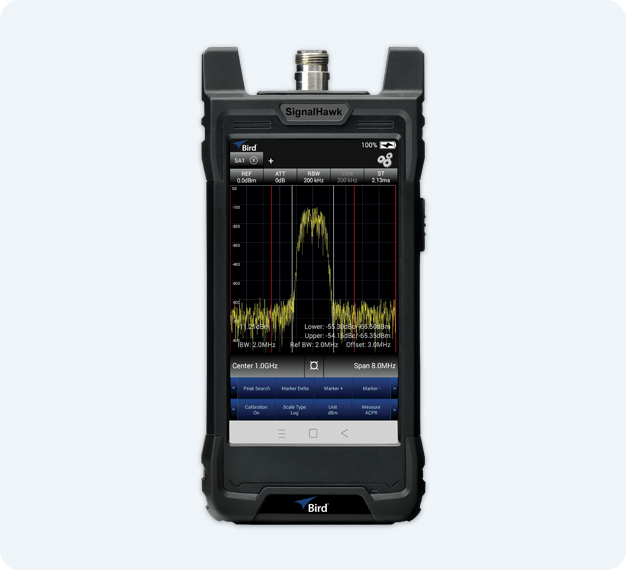

SignalHawk
Spectrum Analyzer
The Bird SignalHawk® Series provides real-time spectrum monitoring and analysis of the RF spectrum. The SH-60S covers frequencies from 9 kHz up to 6 GHz while the SH-75S covers up to 7.5 GHz. They combine best-in-class functionality with compact package, with all features accessible through an intuitive touchscreen user interface.
Base SignalHawks (-TC) bring the spectrum into your hand, ideal for basic measurement and analysis.
Angle of Arrival (-AOA) SignalHawks allow for interference hunting and more advanced spectrum measurements.
Included in RF Master Kits

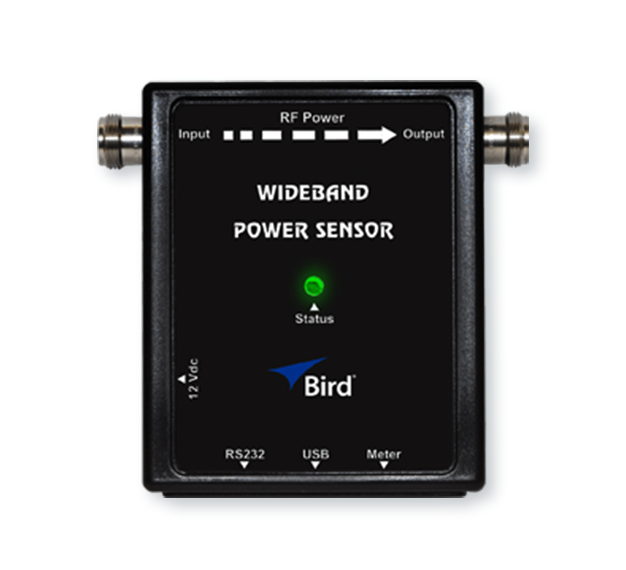

Pair your SiteHawk with a Sensor
Bird sensors are the standard for RF power measurement. Using the RF Meter app included with your SiteHawk and SignalHawk, your test kit allows you control and take measurements from any compatible Bird sensor, not just the one included with your kit.
| Sensor | Frequency Range | Power Range |
| 5017D | 25 MHz to 1.0 GHz | 500 mW to 500 W |
| 5017D-AV | 100 MHz - 1.3 GHz | 500 mW to 500 W |
Included in RF Master Kits
Measurement Flexibility Out of the Box
Each RF Master kit includes:

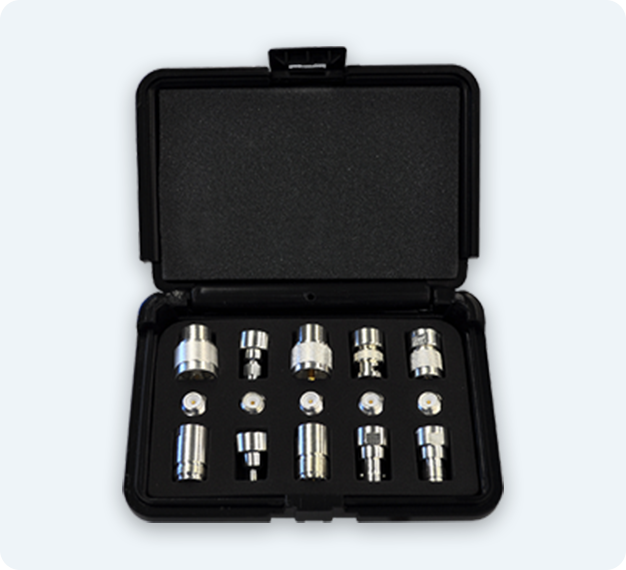

- A 4240-401 Adapter kit, allowing adapting between male/female connectors of any: Type N, BNC, TNC, UHF, and SMA.
- A 4240-500-10 Adapter for converting Type N (F) found on the SiteHawk, SignalHawk, load, and sensor to SMA (M).
- A 4240-500-23 Adapter for converting Type N (F) to SMA (F).
- A 25-T-MN Load, allowing safe dissipation of up to 25 W of RF energy as heat, cooled by convection.
Save Time & Save Effort

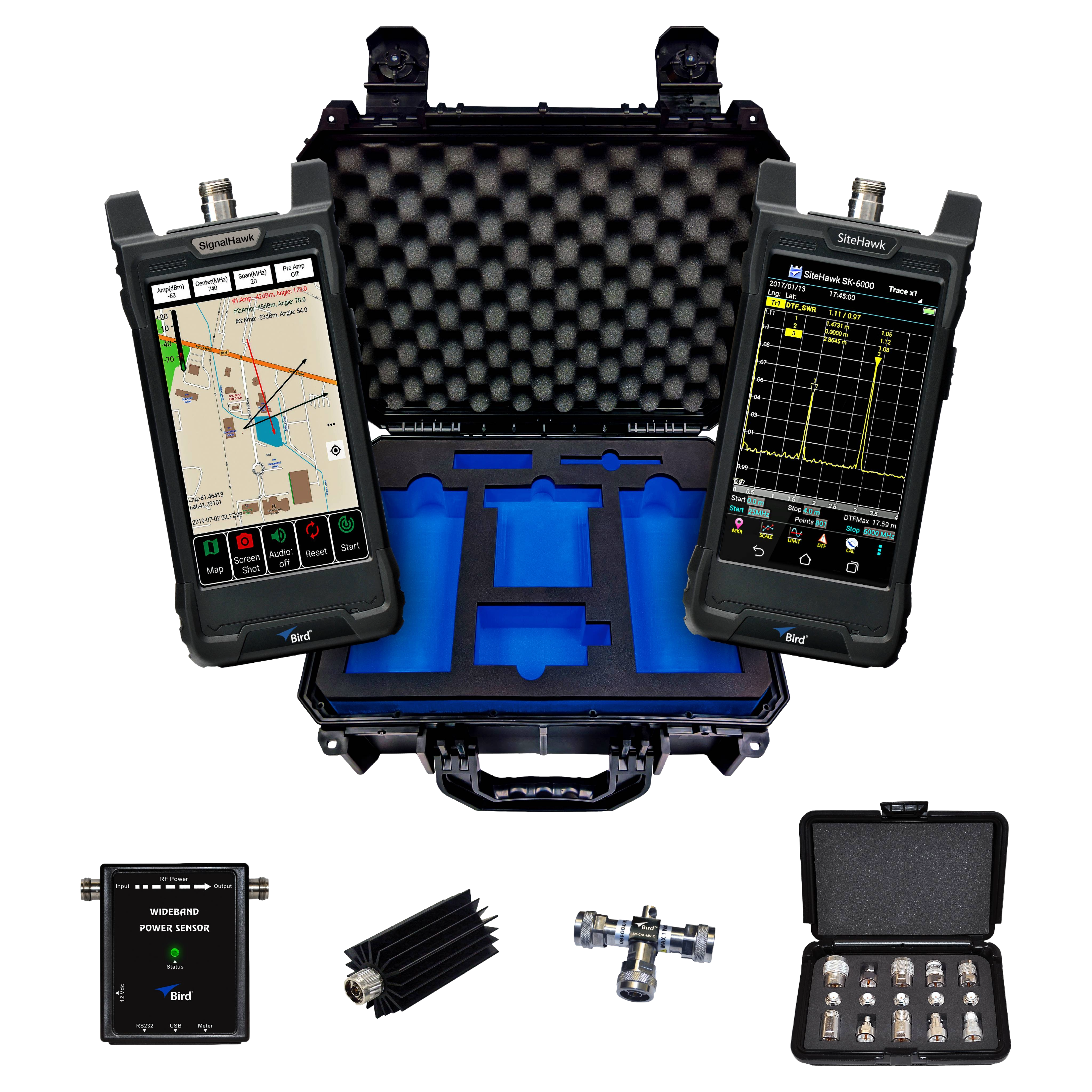

A Bird RF Master Kit combines the cable and antenna analysis capabilities of the SiteHawk—measuring antenna match, determining cable loss, and identifying and locating faults with Distance-to-Fault—with the awesome visualization and analysis of the SignalHawk, plus commonly used adapters, an RF load, and an RF sensor for power measurement.
These essential capabilities prepare you to deal with just about any situation involving RF cables and antennas.
