RF Editor

Graphical RF Signal Editor Software

RF Editor is a drag and drop graphical editing tool for the modification or creation of I&Q signals of any length. It’s an invaluable tool for modifying and building signal waveforms in the time and frequency domains and is integrated with Spectro-X signal analysis software.

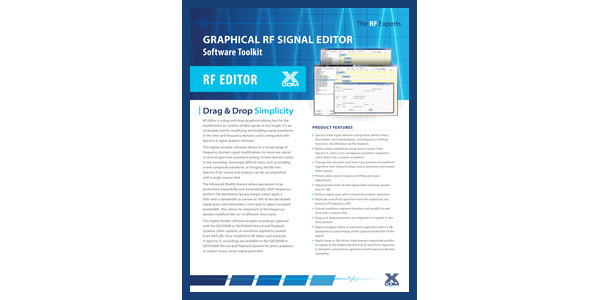

Request Quote View Datasheet

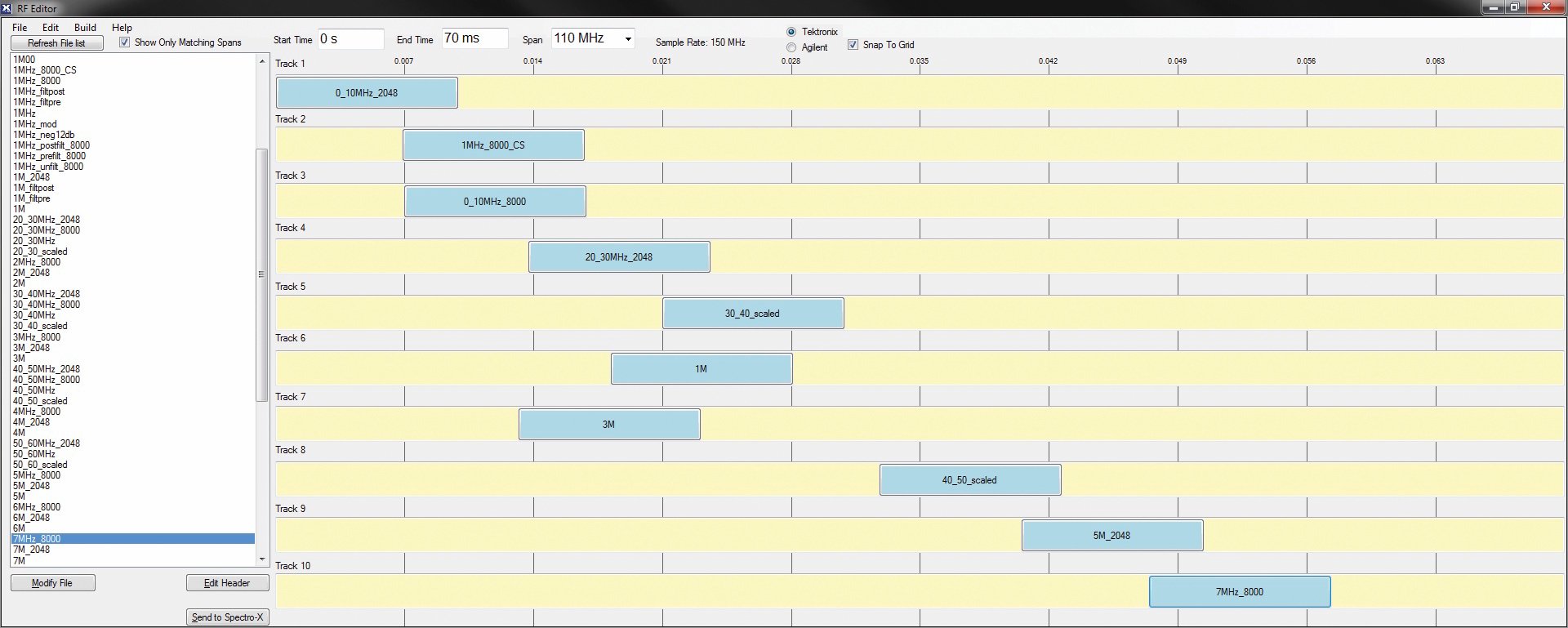

Drag & Drop Simplicity

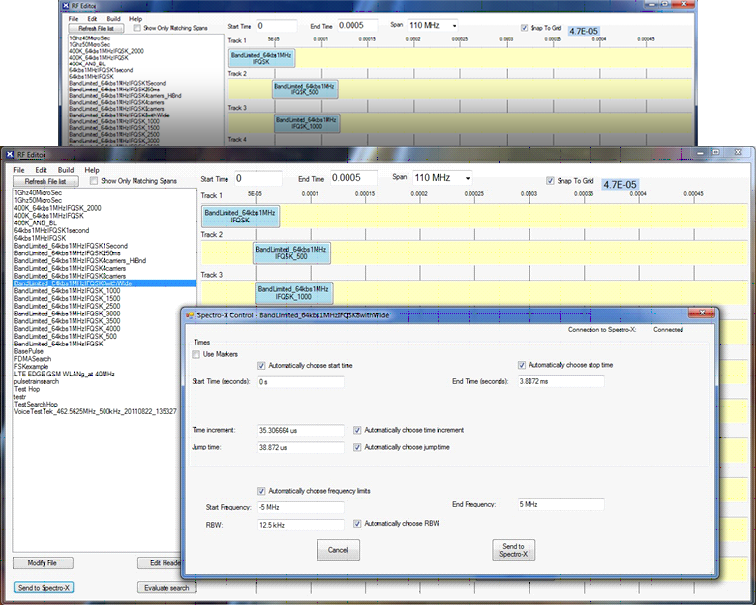

RF Editor allows for a broad range of frequency domain signal modifications to move any signal or slice of spectrum anywhere among 10 time domain tracks in the recording. Seemingly difficult tasks such as building a new composite waveform, or bringing the file into Spectro-X for review and analysis, can be accomplished with a single mouse click.

Advanced Editing

Operations can be performed sequentially and automatically. Shift frequency, perform file decimation by any integer value, apply a filter with a bandwidth as narrow as 10% of the decimated signal span, and interpolate a new span to adjust occupied bandwidth.

Flexible Import and Export

Import recorded RF signals from the IQC5000B or IQC91000A, other systems, or MATLAB. Output files for just about any vector signal generator.

RF Editor for Windows

RF Editor for Windows includes a free 30 day evaluation period. Request a Quote below to receive a download.

System Requirements

Windows 7 (32 bit min, 64-bit recommended)
10 MB free space on OS drive
USB 3.0 or eSATA
mouse or trackball
1 GB RAM (required, 2 GB or more recommended)
