Spectro-X

RF Signal Analysis Software

Spectro-X is the essential signal extraction tool that enables users to sift through multi-terabytes of RF data recordings to quickly identify signals of interest based on user input. The fast, spectral search enables visualization and analysis, with high resolution, for system or test engineers developing EASA and conventional radar, ELINT, SIGINT, ECM, ESM, multi-channel communications, telemetry and MIMO systems.

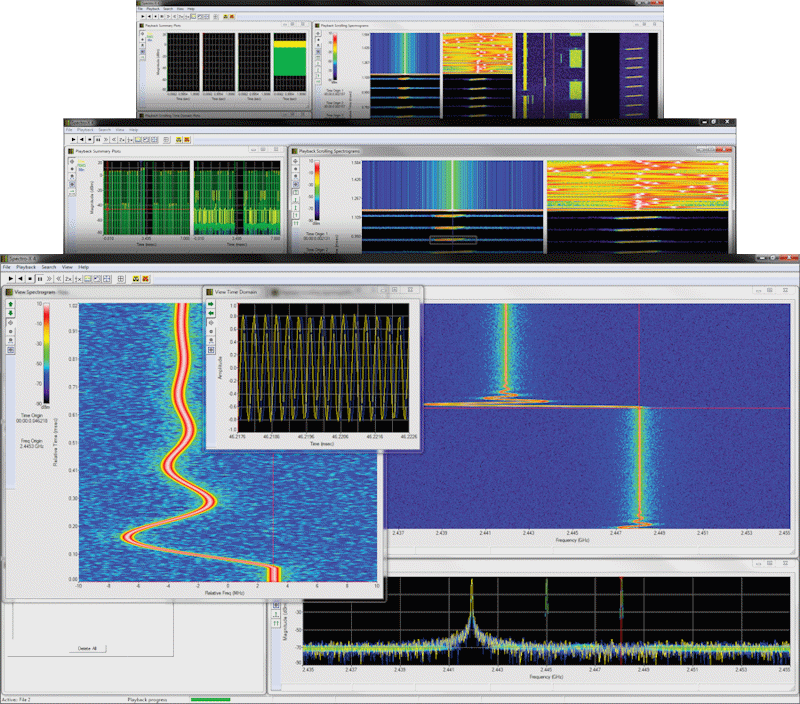

Spectro-X Screen Group

Visualize Complex RF Signals

Spectro-X turns hours of attended spectrum monitoring into fast post-acquisition search, mark and measurement tasks, all without any programming.

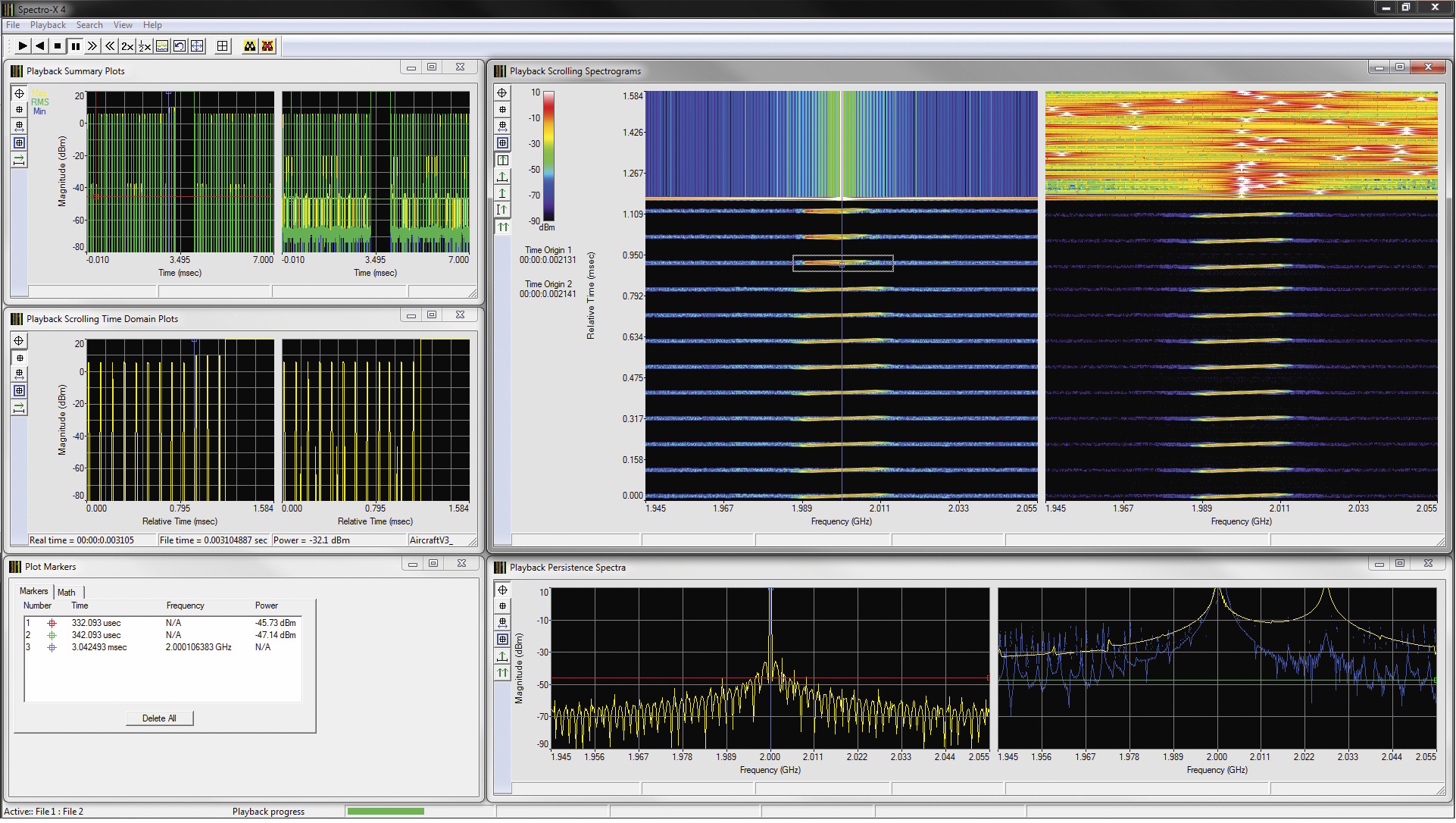

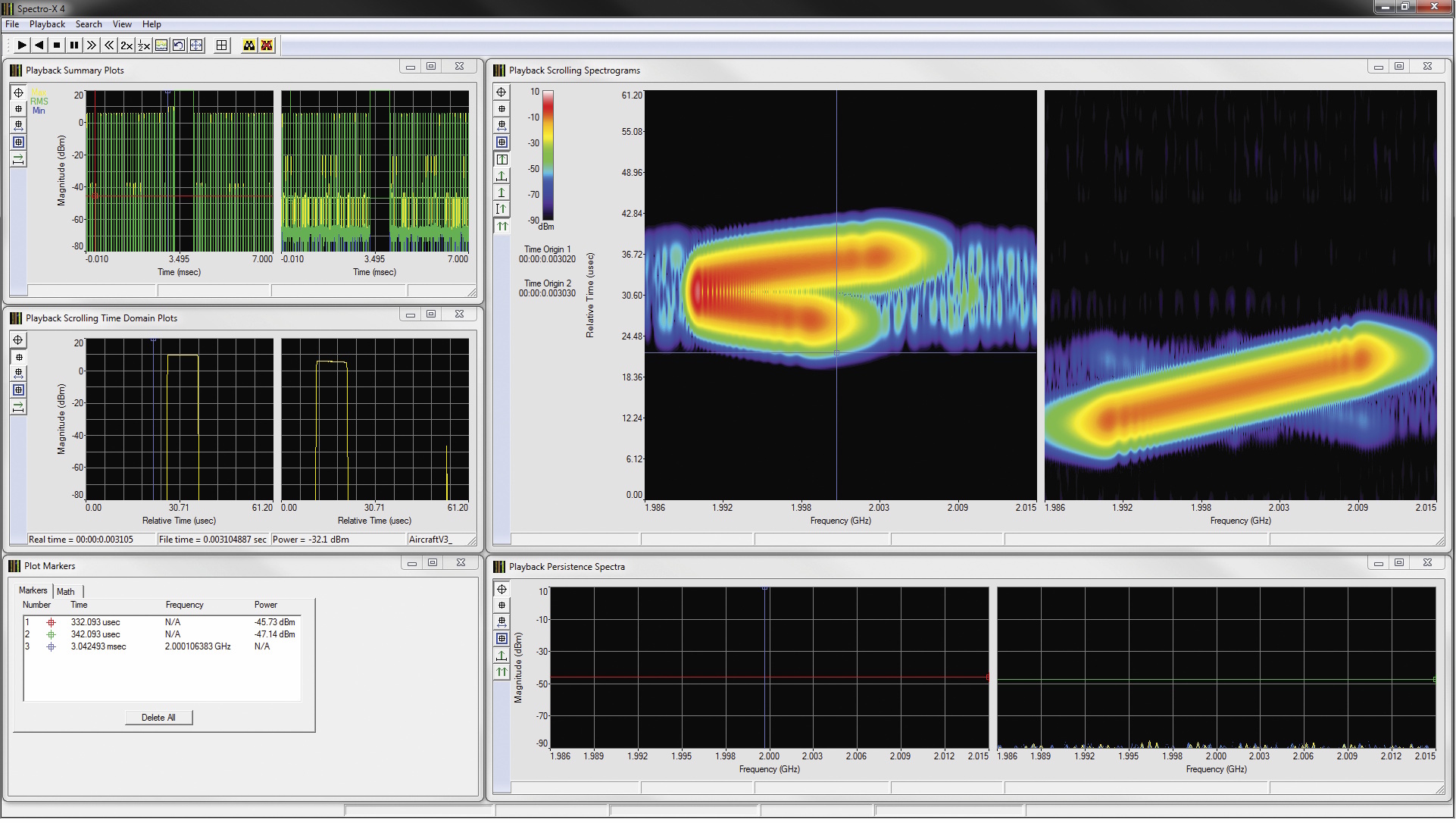

Find and zoom into specific sections of captured files using Spectro-X’s three discrete search engines: Carrier, Arbitrary Waveform, and Pulse. Selected portions of large recordings can be IQ exported to industry standard formats usable by vector signal analysis software for demodulation and detailed analysis.

Powerful Insight

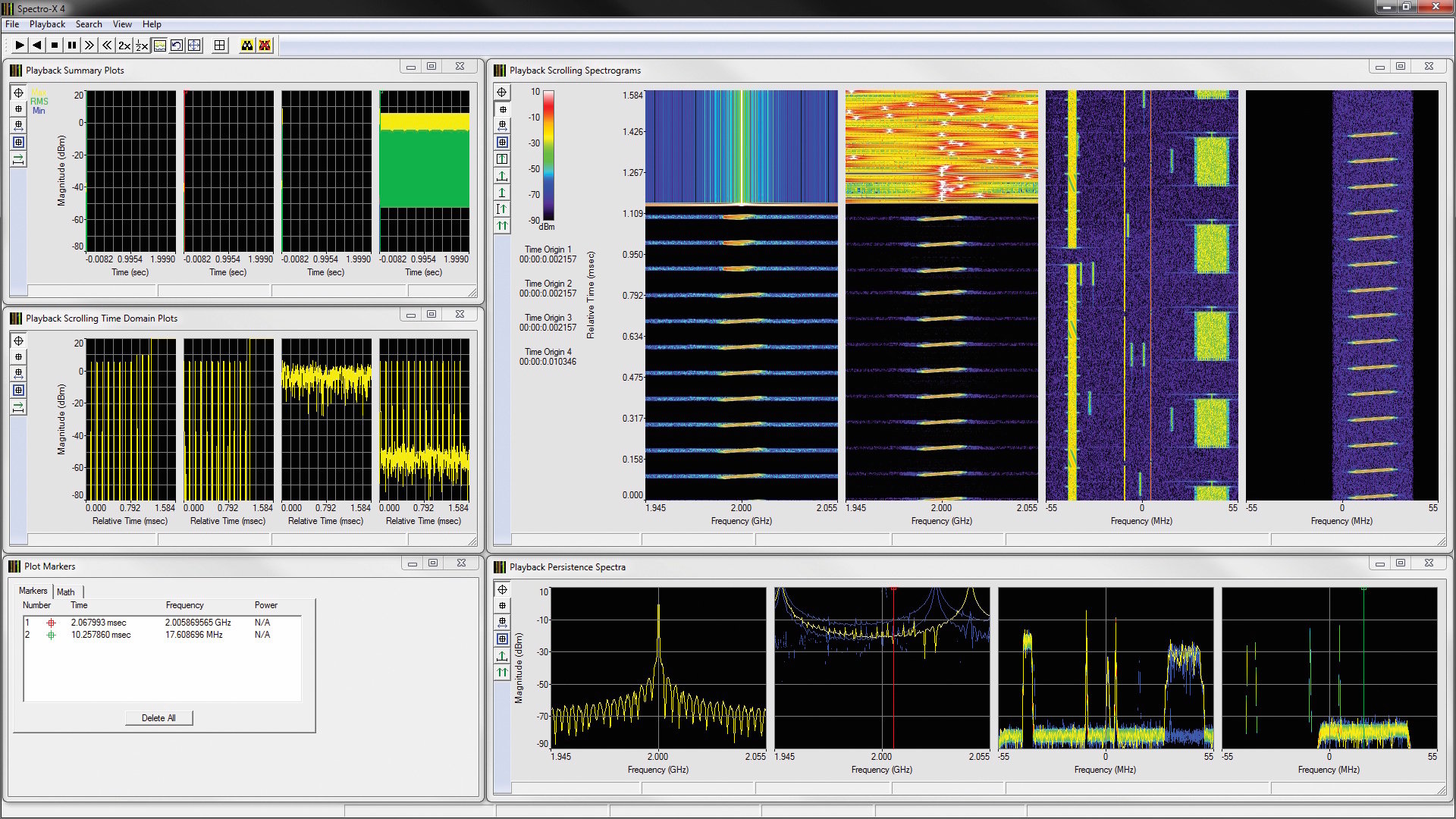

Simultaneously view and analyze up to 4 signal files (channels). Choose frequency, time, and magnitude plots for each channel.

Powerful Search

Search recordings by carrier signal, waveform matching of saved IQ data, and pulse parameters like rise/fall time, width, or power.

Powerful Visualization

>12 different plotting options, unlimited markers, and flexible playback options speed time to insight.

Spectro-X for Windows

Spectro-X for Windows includes a free 30 day evaluation period. Request a Quote below to receive a download.

System Requirements

  • Windows 7 PC (64-bit)
  • 120 MB available on OS drive (>100 GB recommended for storage of playback files)
  • 2GB RAM minimum.

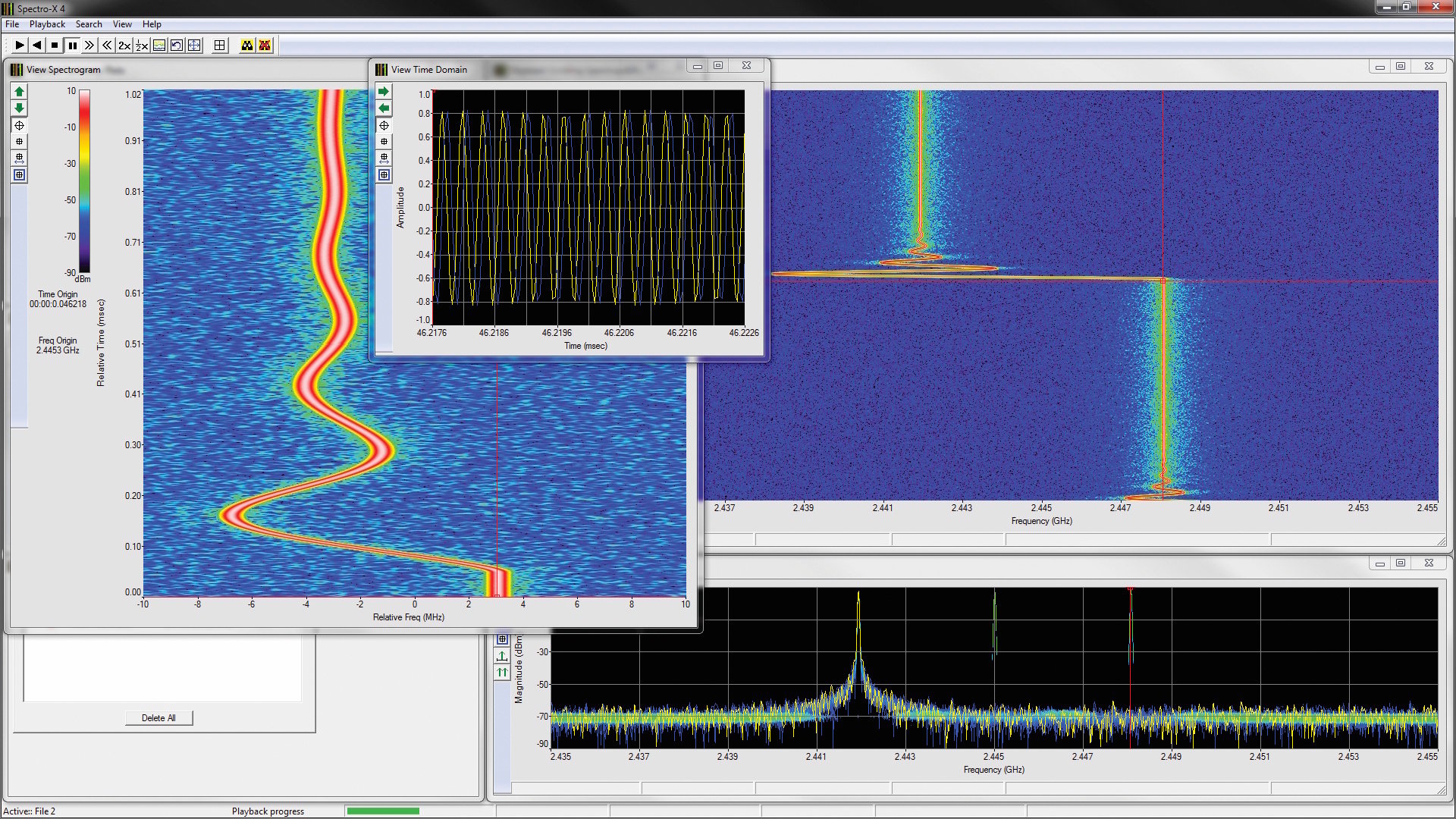

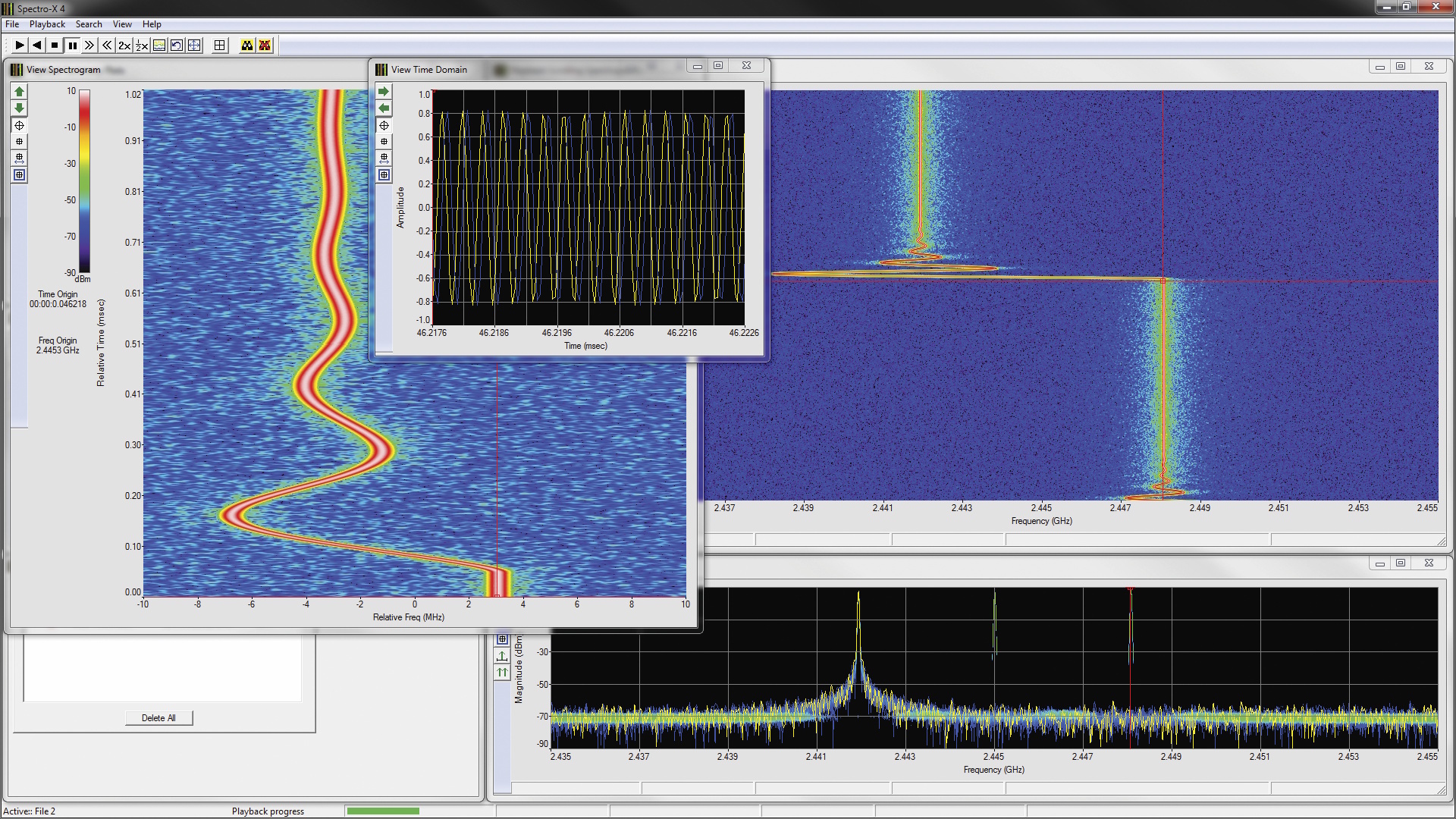

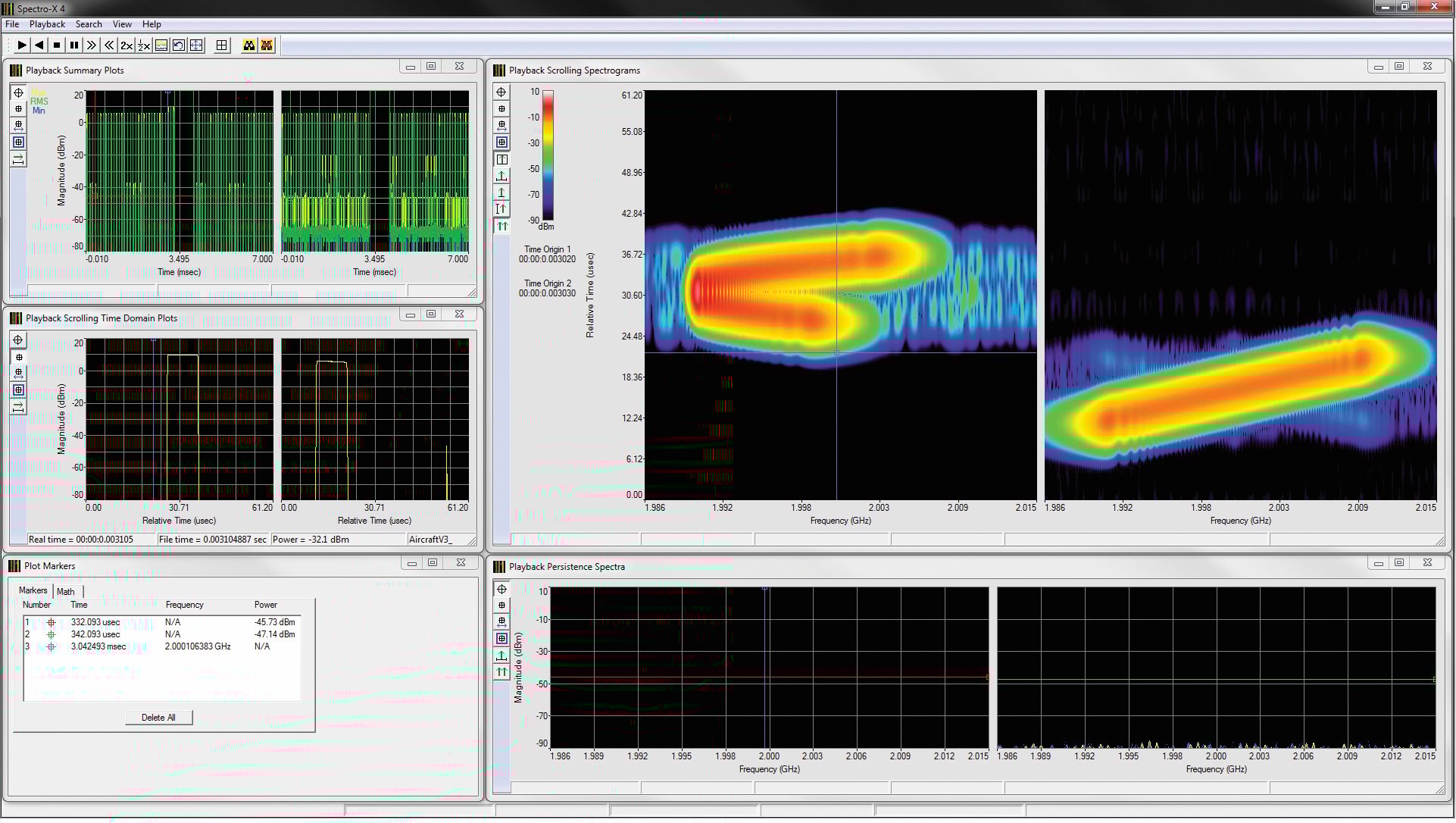

Spectro-X Spectrogram View
