8072A Series

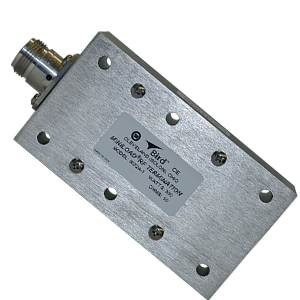

8072A Series, 300 Watt Conduction-Cooled Dry RF Terminations
8072A Series

300 Watt, Conduction-Cooled Dry Terminations


8072A Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.

Features
  • Rugged Reliability provides years of trouble free use
  • Conducts heat to user-supplied heat sink
  • Compact size, lightweight
product specifications:
Item No
8072A Series
Item Name
300 Watt, Conduction-Cooled Dry Terminations
Power Rating
300 W Continuous when mounted to suitable heat sink
Frequency Range and VSWR
8072A-1
DC to 1 GHz @ 1.10 (max)
1GHz to 2.5 GHz @ 1.20 (max)

8072A-2
2.7 to 2.9 GHz @ 1.15 (max)
Temperture
8072A-1: -40° to +55°C (-40° to 131°F)
8072A-2: -40° to +70°C (-40° to 158°F)
Heat Sink
Required
800 sq. in. plate x 1/8"
(5200cm² x 3.2mm) or equivalent
Impedance Ω
50
Connectors
Type-N (Female)
Finish
Silver or Tri-Alloy Plated
Load Coolant
Dry, Conduction-Cooled
Operating Position
Any
Dimensions
4-25/64" x 2" x 1-1/32" (110 x 51 x 26mm); nominal
Includes connectors
Weight
12 oz. (.34 kg)
Mounting
Six screws, Torqued to 25 to 30 in/lb
