300-WT Series

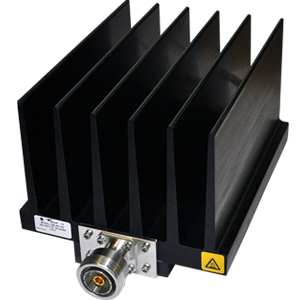

300-WT Series, 300 Watt Convection-Cooled Dry RF Terminations
300-WT Series

300 Watt, Convection-Cooled Dry Terminations


300-WT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI. No fluids or maintenance required.

Features
  • Wide variety of connectors
  • Rugged Reliability provides years of trouble free use
  • Ultra-Compact size, tapped mounting holes for fixed installations
  • QC connector option for dozens of speciality connector types
product specifications:
Item No
300-WT Series
Item Name
300 Watt, Convection-Cooled Dry Terminations
Power Rating
300
Frequency Range and VSWR
DC to 1 GHz @ 1.10:1 max.
1 GHz to 2.4 GHz @ 1.25:1 max.
Impedance Ω
50
Temperture Range
-40 to +40 °C
Coolant
Dry (Convection-Cooled)
Product Type
Dry (Convection-Cooled)
Operating Position
Connectors
BNC, 7/16 DIN, N, TNC
Finish
Black Anodized Aluminum
Dimensions
8.2" x 5.4" x 4.8" (L x W x H)
208.28 x 137.16 x 121.92 mm
Weight
4.6 lbs. (2.09 kg)
