TVNA Logo

TVNA

Vector Network Analyzer Control Software

TVNA is no longer actively developed and is provided in an as-is state.

TVNA Logo

Intuitive Control

Bird's TVNA Software is designed to help you control your Bird Vector Network Analyzer and easily visualize the results. It provides a graphical front-end to all your VNA's features with plentiful graphing options, analysis features, and flexible data export.

Select a version of TVNA below to download it for you PC.

Flexible Trace Formats

Log Mag, Phase (Deg), Phase (Rad), Group Delay, Lin Mag, SWR, Real, Imaginary, Unwrapped Phase, Positive Phase, Smith, and Polar

Powerful Visualization

See up to 16 independent channels simultaneously with up to 16 traces per channel, and 16 markers per trace.

Advanced Analysis

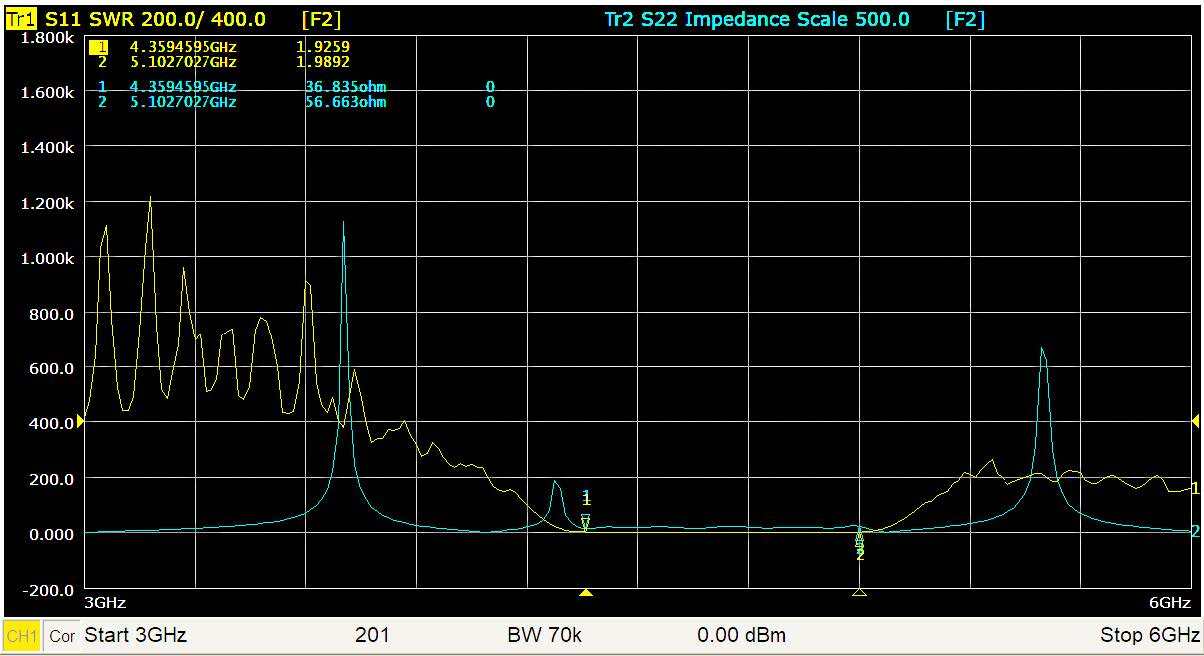

Add options for Time Domain Analysis & Gating and Fixture Circuit Simulation.
  • Standard
  • Multi-Unit
  • Demo

Bird TVNA

The Standard version of TVNA is for controlling a single Bird VNA. Its analysis capability can be extended with options.

Minimum System Requirements:
  • Windows 7 or later
  • 1.5 GHz CPU
  • 1 GB RAM
  • USB 2.0

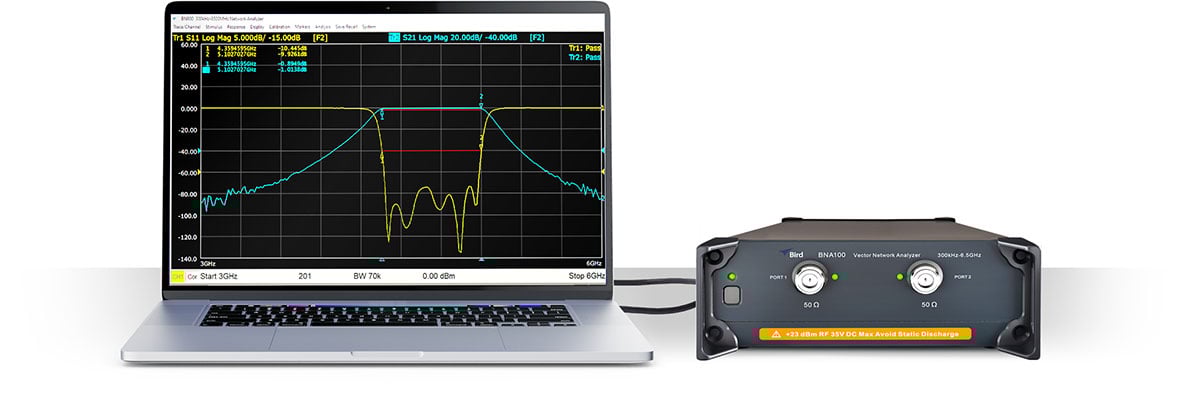

BNA100-vna-configuration

Multi-Unit TVNA

The Multi-Unit version of TVNA supports controlling up to 4 Bird VNAs at the same time for a maximum of 16 VNA channels.

Only one version of TVNA can be installed at a time.

Minimum System Requirements:
  • Windows 7 or later
  • 1.5 GHz CPU
  • 1 GB RAM
  • USB 2.0

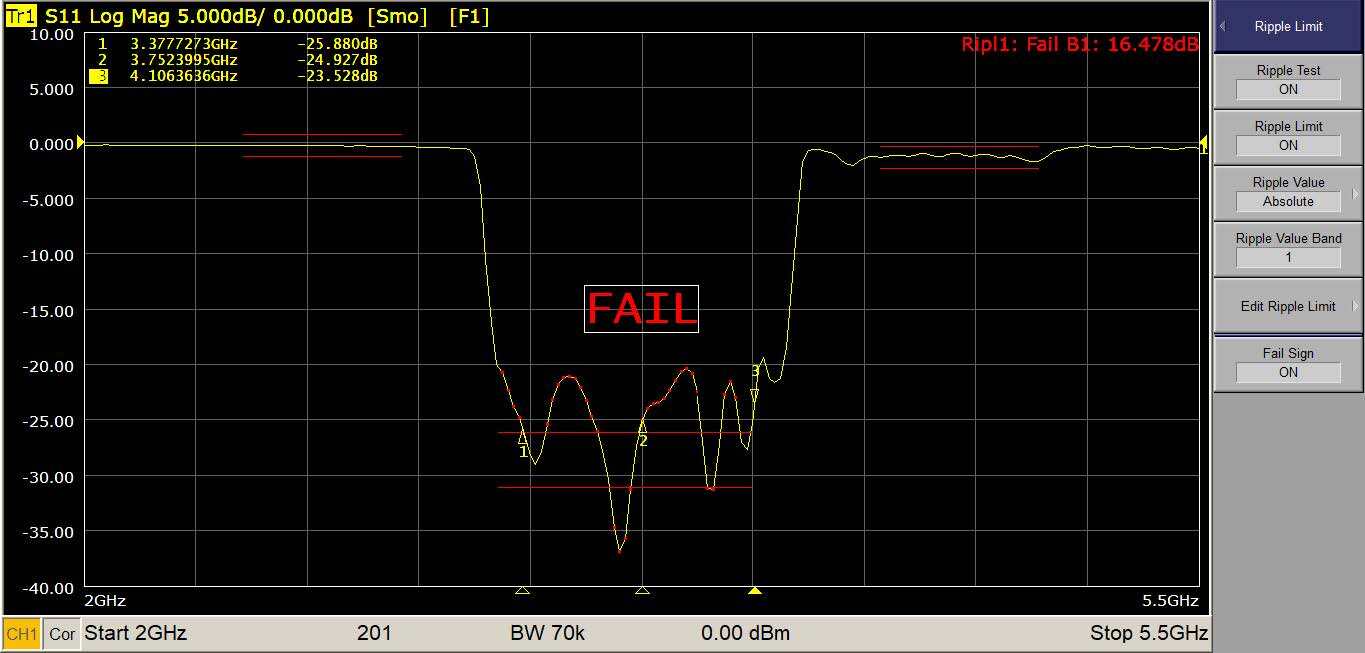

TVNA-Ripple Limit Testing Screenshot

Demo TVNA

The Demo version of TVNA allows you to explore the features and capabilities of TVNA without a VNA connected to your computer.

Only one version of TVNA can be installed at a time.

Minimum System Requirements:
  • Windows 7 or later
  • 1.5 GHz CPU
  • 1 GB RAM

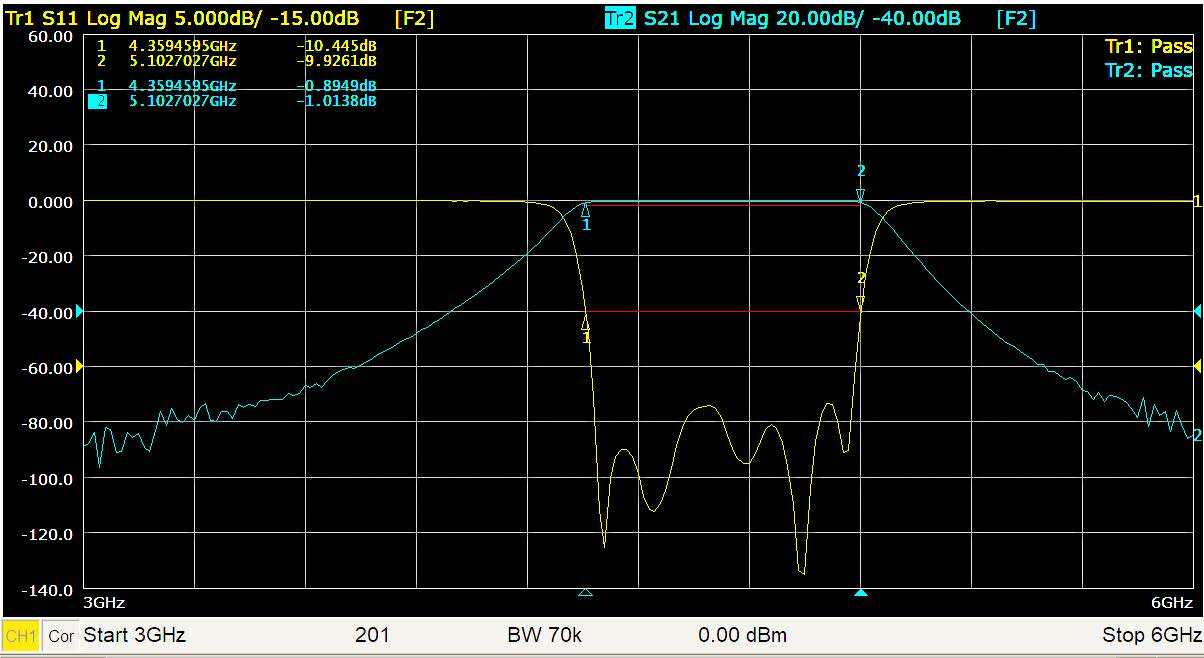

TVNA-Passive Component Evaluation Screenshot

Need More Ways to Control?

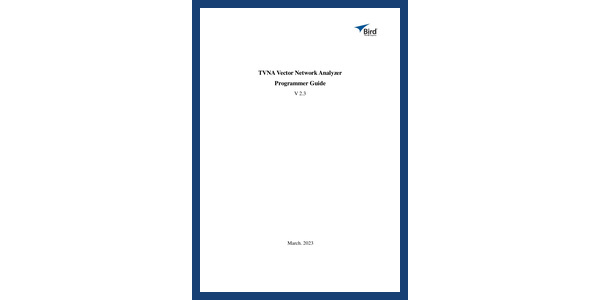

Bird VNAs support a comprehensive set of SCPI control commands which should be familiar to anyone who's programmed test equipment before. These commands expose the full range of VNA capabilities, from calibration to display configuration, to measurement, to data processing. Download the Programming Manual or check out the code examples on Bird's GitHub.

attenuator-connected-square

Get Results Quickly

Bird's TVNA software helps you get up and running with your Vector Network Analyzer quickly, so you spend less time configuring a setup and more time getting answers. Flexible analysis and reporting capabilities, and an extensible API, allow you to extend your analysis to custom workflows as needs demand.

TVNA-Manufacturing Test
