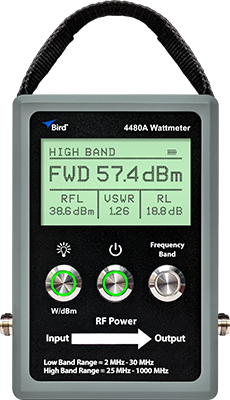

The Bird 4480A Digital Wattmeter is used to install, maintain, and troubleshoot RF transmission systems operating from 2 MHz to 1 GHz. It measures forward and reflected true average power, VSWR, and return loss on CW and digitally modulated signals with ±4% accuracy. Its element-free design allows technicians to measure across its supported frequency and power ranges without selecting or changing plug-in elements.

For example, a technician can use the 4480A on a P25 land mobile radio system to verify transmitter output power while monitoring reflected power and VSWR to help confirm the RF system is operating properly.

The Bird 4480A is a digital, element-free wattmeter, while traditional Bird wattmeters such as the Model 43 use interchangeable plug-in elements selected for specific frequency and power ranges. The 4480A measures forward and reflected true average power, VSWR, and return loss across 2 MHz–1 GHz without changing elements and supports both CW and digitally modulated signals.

For example, a technician working across several supported RF bands can move between systems without carrying and swapping multiple plug-in elements.

A digital RF wattmeter is useful when technicians need direct numerical readings, multiple displayed measurements, or support for digitally modulated RF signals. Digital wattmeters can also simplify testing when measurements such as forward power, reflected power, VSWR, and return loss need to be viewed together.

For example, a technician maintaining a P25 radio system may use a digital wattmeter to verify transmitter power while monitoring reflected power and VSWR during the same test.
