Trusted performance, decade after decade.

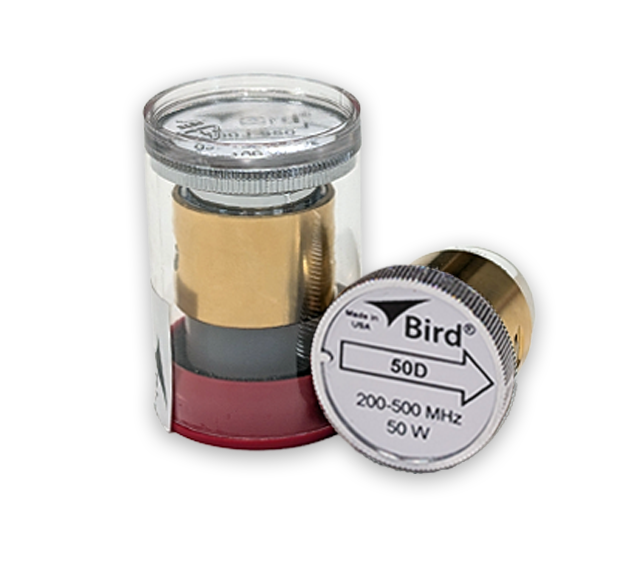

Standard Elements

Bird Standard Plug-In Elements are the go-to choice for RF professionals who need dependable power measurement day after day. Technicians in broadcast, public safety, defense, and process control rely on them to verify transmitter output, check system performance, and troubleshoot issues on-site.

Built for 7/8" line sections and wattmeters, these elements are rugged enough for field conditions yet trusted for bench testing—helping keep critical RF systems on the air and operating at their best.



standard_element_white

Why Choose Bird Elements?

Compare Elements

Find the right element for your frequency and power range—quickly compare models to match your exact application.

Item Name
Model Number
Frequency Range
Power
Quote/Buy Now
Standard Element button_text
1000A
25 MHz to 60 MHz
1 kW
Standard Element button_text
1000B
50 MHz to 125 MHz
1 kW
Standard Element button_text
1000C
100 MHz to 250 MHz
1 kW
Standard Element button_text
1000D
200 MHz to 500 MHz
1 kW
Standard Element button_text
1000H
2 MHz to 30 MHz
1 kW
Standard Element button_text
100A
25 MHz to 60 MHz
100 W
Standard Element button_text
100B
50 MHz to 125 MHz
100 W
Standard Element button_text
100C
100 MHz to 250 MHz
100 W
Standard Element button_text
100D
200 MHz to 500 MHz
100 W
Standard Element button_text
100E-400
400 MHz to 800 MHz
100 W
Standard Element button_text
100E-800
800 MHz to 1 GHz
100 W
Standard Element button_text
100H
2 MHz to 30 MHz
100 W
Standard Element button_text
10A
25 MHz to 60 MHz
10 W
Standard Element button_text
10B
50 MHz to 125 MHz
10 W
Standard Element button_text
10C
100 MHz to 250 MHz
10 W
Standard Element button_text
10D
200 MHz to 500 MHz
10 W
Standard Element button_text
10E-400
400 MHz to 800 MHz
10 W
Standard Element button_text
10E-800
800 MHz to 1 GHz
10 W
Standard Element button_text
2500D
200 MHz to 500 MHz
2.5 kW
Standard Element button_text
2500H
2 MHz to 30 MHz
2.5 kW
Standard Element button_text
250A
25 MHz to 60 MHz
250 W
Standard Element button_text
250B
50 MHz to 125 MHz
250 W
Standard Element button_text
250C
100 MHz to 250 MHz
250 W
Standard Element button_text
250D
200 MHz to 500 MHz
250 W
Standard Element button_text
250E-400
400 MHz to 800 MHz
250 W
Standard Element button_text
250E-800
800 MHz to 1 GHz
250 W
Standard Element button_text
250H
2 MHz to 30 MHz
250 W
Standard Element button_text
25A
25 MHz to 60 MHz
25 W
Standard Element button_text
25B
50 MHz to 125 MHz
25 W
Standard Element button_text
25C
100 MHz to 250 MHz
25 W
Standard Element button_text
25D
200 MHz to 500 MHz
25 W
Standard Element button_text
25E-400
400 MHz to 800 MHz
25 W
Standard Element button_text
25E-800
800 MHz to 1 GHz
25 W
Standard Element button_text
25H
2 MHz to 30 MHz
25 W
Standard Element button_text
5000H
2 MHz to 30 MHz
5 kW
Standard Element button_text
500A
25 MHz to 60 MHz
500 W
Standard Element button_text
500B
50 MHz to 125 MHz
500 W
Standard Element button_text
500C
100 MHz to 250 MHz
500 W
Standard Element button_text
500D
200 MHz to 500 MHz
500 W
Standard Element button_text
500E-400
400 MHz to 800 MHz
500 W
Standard Element button_text
500E-800
800 MHz to 1 GHz
500 W
Standard Element button_text
500H
2 MHz to 30 MHz
500 W
Standard Element button_text
50A
25 MHz to 60 MHz
50 W
Standard Element button_text
50B
50 MHz to 125 MHz
50 W
Standard Element button_text
50C
100 MHz to 250 MHz
50 W
Standard Element button_text
50D
200 MHz to 500 MHz
50 W
Standard Element button_text
50E-400
400 MHz to 800 MHz
50 W
Standard Element button_text
50E-800
800 MHz to 1 GHz
50 W
Standard Element button_text
50H
2 MHz to 30 MHz
50 W
Standard Element button_text
5A
25 MHz to 60 MHz
5 W
Standard Element button_text
5B
50 MHz to 125 MHz
5 W
Standard Element button_text
5C
100 MHz to 250 MHz
5 W
Standard Element button_text
5D
200 MHz to 500 MHz
5 W
Standard Element button_text
5E-400
400 MHz to 800 MHz
5 W
Standard Element button_text
5E-800
800 MHz to 1 GHz
5 W
Hybrid Standard/Pulse Element button_text
2500A
25 MHz to 60 MHz
2.5 kW
Hybrid Standard/Pulse Element button_text
2500B
50 MHz to 125 MHz
2.5 kW
Hybrid Standard/Pulse Element button_text
2500C
100 MHz to 250 MHz
2.5 kW
Hybrid Standard/Pulse Element button_text
5000A
25 MHz to 60 MHz
5 kW
Hybrid Standard/Pulse Element button_text
5000B
50 MHz to 125 MHz
5 kW
Hybrid Standard/Pulse Element button_text
5000C
100 MHz to 250 MHz
5 kW
  Swipe for more
Dependable Power Measurement Starts Here

Trusted Measurement Starts with the Right Element

The wattmeter is a trusted tool on every RF bench—but it’s the element inside that makes the reading count. That’s why RF professionals choose Bird Plug-In Elements: to ensure the accuracy, consistency, and confidence their systems demand.

Built for long-term compatibility and everyday reliability, Bird elements keep wattmeters working the way they should—without second-guessing or surprise results.

Talk to us to get the right element—and keep your measurements on point.
