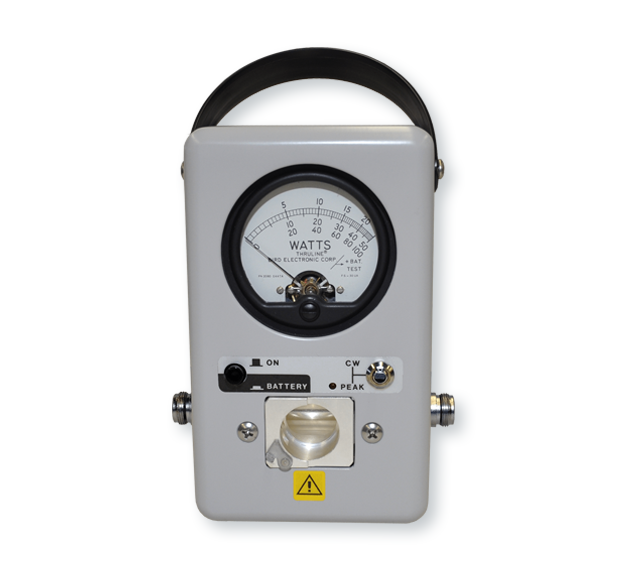

4314C Wattmeter

Broadband Power with Peak Envelope Measurement

The Bird 4314C builds on the legacy of the Model 43 with added circuitry to measure peak envelope power (PEP)—a critical need for amplitude-modulated signals like AM broadcast, SSB, and TV video.

Compatible with Bird’s full range of plug-in elements and powered by internal batteries or an AC adapter, the 4314C is a field-proven wattmeter ready for both average and peak power readings across a wide frequency range.

Buy Now View Manual

Why Choose the 4314C?

Accurate PEP Measurement

Capture peak power on AM, SSB, and TV signals with built-in peak detection.

Switchable Power Modes

Easily toggle between average (CW) and peak readings.

Built on the Bird 43 Platform

With Bird’s plug-in elements, you can adapt to different frequency bands and power levels.

How It Works

The 4314C uses a directional coupler and analog meter—like the Model 43—but includes active peak detection circuitry powered by two standard 9V batteries (or optional AC).

The internal electronics sample and hold the peak envelope voltage, which is then displayed on the analog meter scale. A front-panel switch allows you to toggle between average (CW) and PEP modes instantly.

Learn How to Read Your Meter Get Expert Help

Measuring peak envelope power in AM, SSB, or TV video transmitters

Performing forward and reflected power checks in broadcast or LMR systems

Use in lab, field, or system test benches where accurate peak detection matters

Continuous power monitoring without interrupting system operation

4314C Model Specification

Model Number

4314C Buy Now

450 kHz to 1.2 GHz

100 mW to 10 kW

± 5% of full scale

Buy Now

Swipe for more

FAQs

Have more questions? Get Expert Help

What’s the benefit of peak envelope power (PEP) measurement?

Does the 4314C require calibration charts or software?

How is the 4314C powered?
