BNA1000 Series

Vector Network Analyzers

For RF and manufacturing engineers who prioritize precision and versatility in design and production, we provide the BNA1000 Modular Vector Network Analyzer. This analyzer uniquely combines the detailed analysis capabilities of a benchtop unit with the adaptability required for diverse manufacturing and R&D environments.

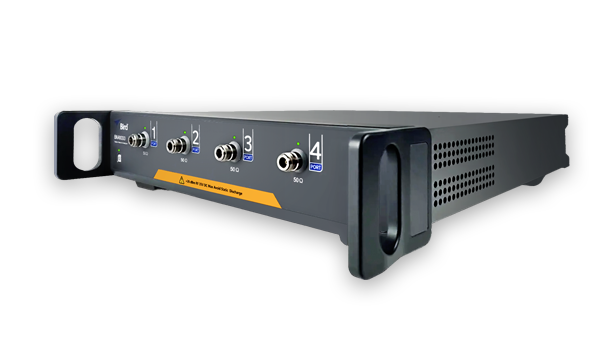

bna1000_4port_side_600x300

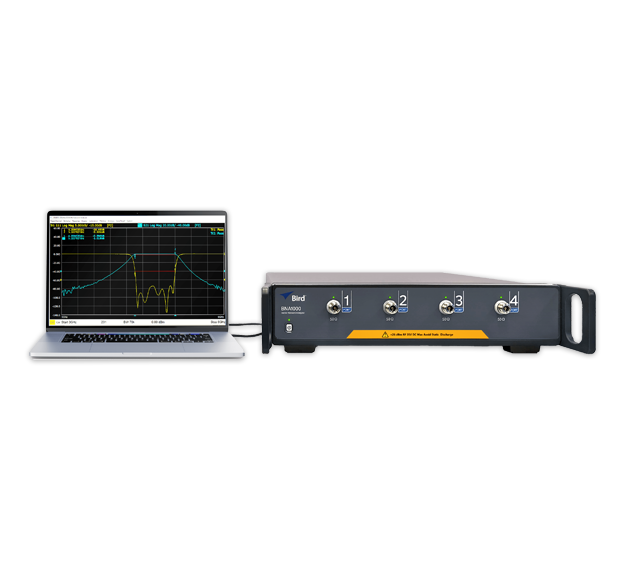

bna1000-configuration-white

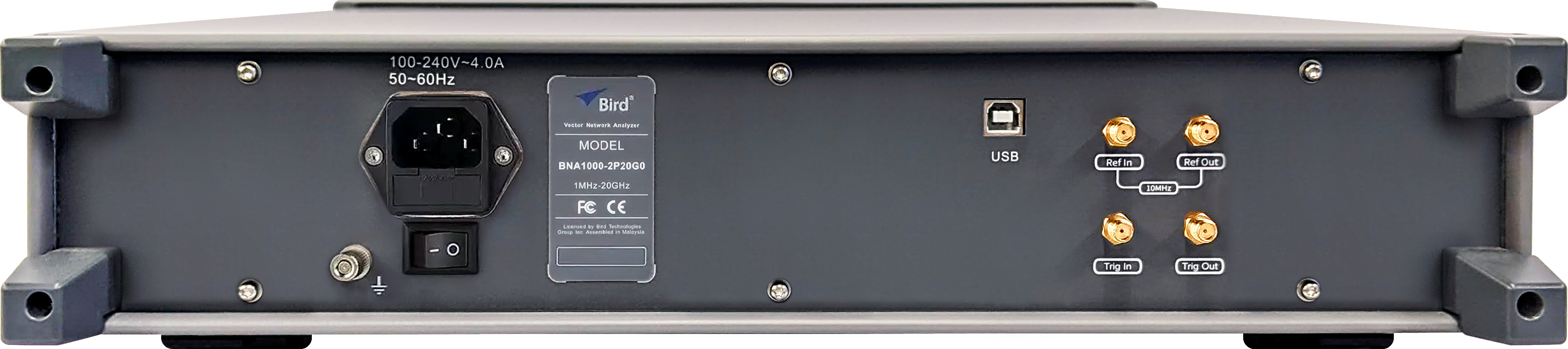

BNA1000-2P20G0-VNA-Back

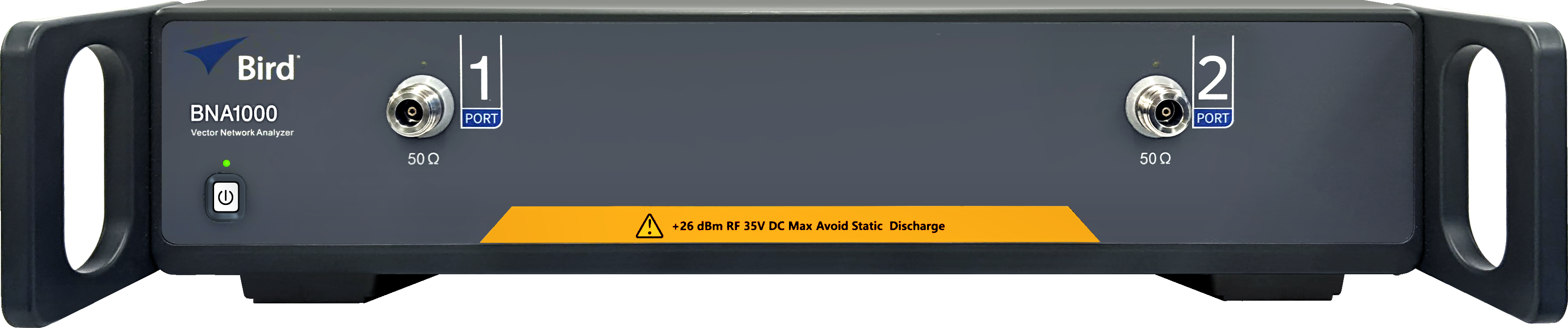

BNA1000-VNA-Front-2-Port

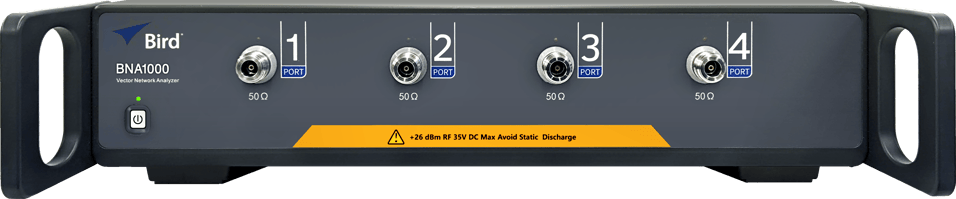

BNA1000-VNA-Front-4-Port

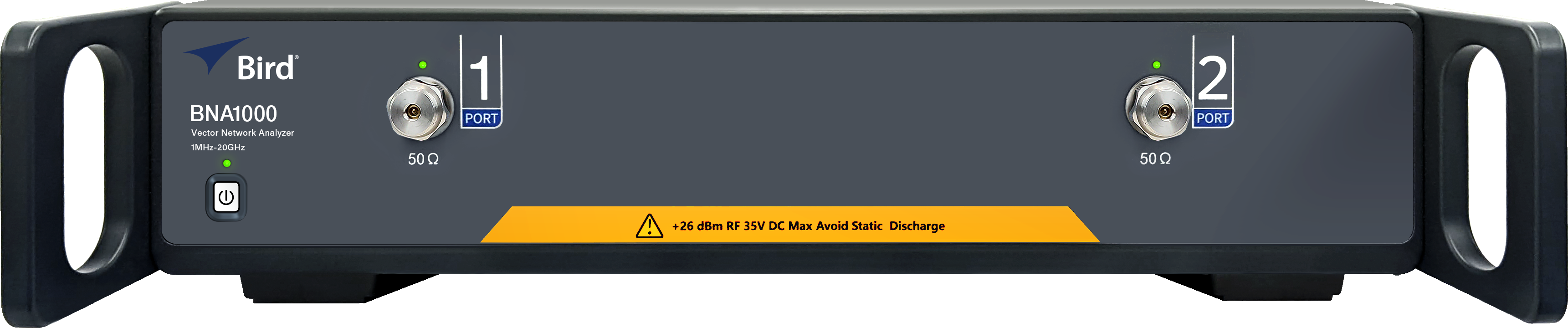

BNA1000-2P20G0-VNA-Front-2-Port
bna1000_4port_side_600x300

Accuracy Meets Agility

Exceeding the constraints of typical lab-focused analyzers and the restricted capabilities of portable models, the BNA1000 offers a broad dynamic range and rapid measurement speed that superbly caters to the diverse requirements of both manufacturing and RF engineering. This ensures a seamless transition from design to production, enhancing both innovation and efficiency.

Better Dynamic Range

With a 125 dB dynamic range, the BNA1000 Series is ideal for tuning RF components and performing small signal measurements.

Better Output Power

The +10 dBm output power of the BNA1000 Series creates a lower noise floor for high-loss DUTS like cables and filters.

Better Measurement Speed

42 µs/point at an IFBW of 500 kHz means less time for errors to affect measurements, saving time in production or testing.

BNA1000 Series

Model Number
Frequency Range
Measurement Bandwidth
Connectors
Number of Ports
Get Qupte
BNA1000-4P6G5 Get Quote
{id=1, name='300 kHz to 6.5 GHz', order=0, label='300 kHz to 6.5 GHz'}
{id=3, name='1 Hz to 2 MHz', order=2, label='1 Hz to 2 MHz'}
N(f)
4
Get Quote
BNA1000-2P8G5 Get Quote
{id=2, name='300 kHz to 8.5 GHz', order=1, label='300 kHz to 8.5 GHz'}
{id=3, name='1 Hz to 2 MHz', order=2, label='1 Hz to 2 MHz'}
N(f)
2
Get Quote
BNA1000-4P8G5 Get Quote
{id=2, name='300 kHz to 8.5 GHz', order=1, label='300 kHz to 8.5 GHz'}
{id=3, name='1 Hz to 2 MHz', order=2, label='1 Hz to 2 MHz'}
N(f)
4
Get Quote
BNA1000-2P20G5 Get Quote
{id=3, name='1 MHz to 20 GHz', order=2, label='1 MHz to 20 GHz'}
{id=2, name='1 Hz to 1 MHz', order=1, label='1 Hz to 1 MHz'}
3.5mm NMD(m)
2
Get Quote
  Swipe for more

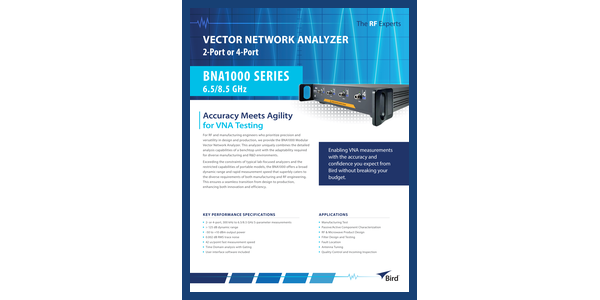

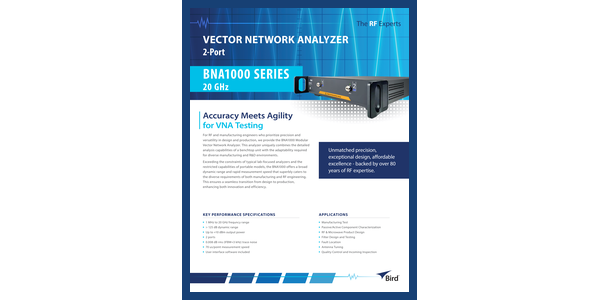

Shop Now Download 6.5/8.5 GHz Datasheet Download 20 GHz Datasheet
Powerful Software

Flexible Control. Deeper Insight.

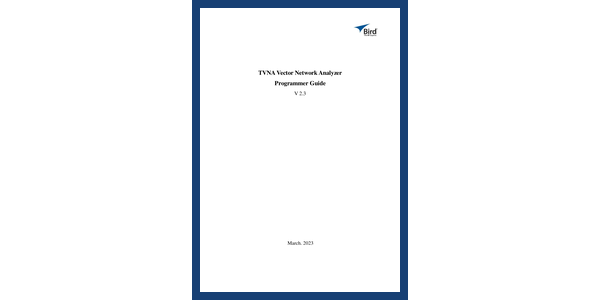

All BNA Series VNAs connect via USB—giving you flexible, full-featured control through Bird’s TVNA software. With streamlined navigation and built-in data analysis tools, TVNA makes complex RF testing clear, efficient, and actionable.

  • Visualize results across multiple plots
  • Run a wide range of RF measurements
  • Use specialty limit and time domain analysis options

Own a BNA1000?

A factory calibration ensures your BNA1000 is working properly and is performing within its specifications. Bird recommends a factory calibration at least once every 3 years.

Get a Calibration Quote Read our App Note on VNA Calibration

BNA1000 FAQs

Have more Questions? Get Expert Help >

Is calibration required?

How do I control the BNA1000?

Accurate Measurements.
Delivered Fast.

Merging affordability with high-end VNA functionalities typically only found in much larger instruments, the BN1000 Series is the perfect tool for those seeking cost-effective solutions without compromising on performance and accuracy. This series exemplifies Bird's commitment to delivering professional-grade RF technology in a user-friendly and economical package.

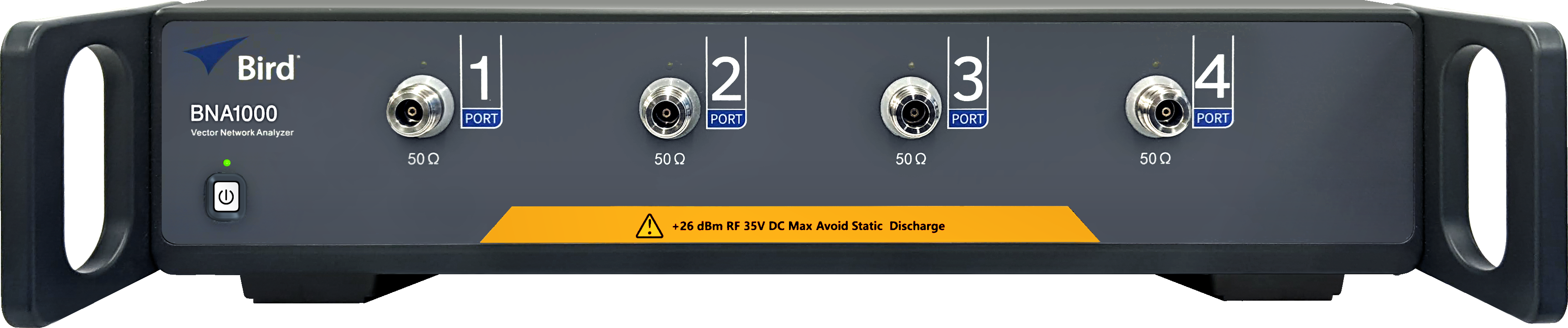

BNA1000-VNA-Front-4-Port
