BNA100 Series

Vector Network Analyzers

The BNA100 Series Vector Network Analyzer offers exceptional performance in a compact package, balancing the demands of productivity, budget, and space. Merging affordability with high-end VNA functionalities, the BNA100 Series is the perfect tool for those seeking cost-effective solutions without compromising on performance and accuracy.

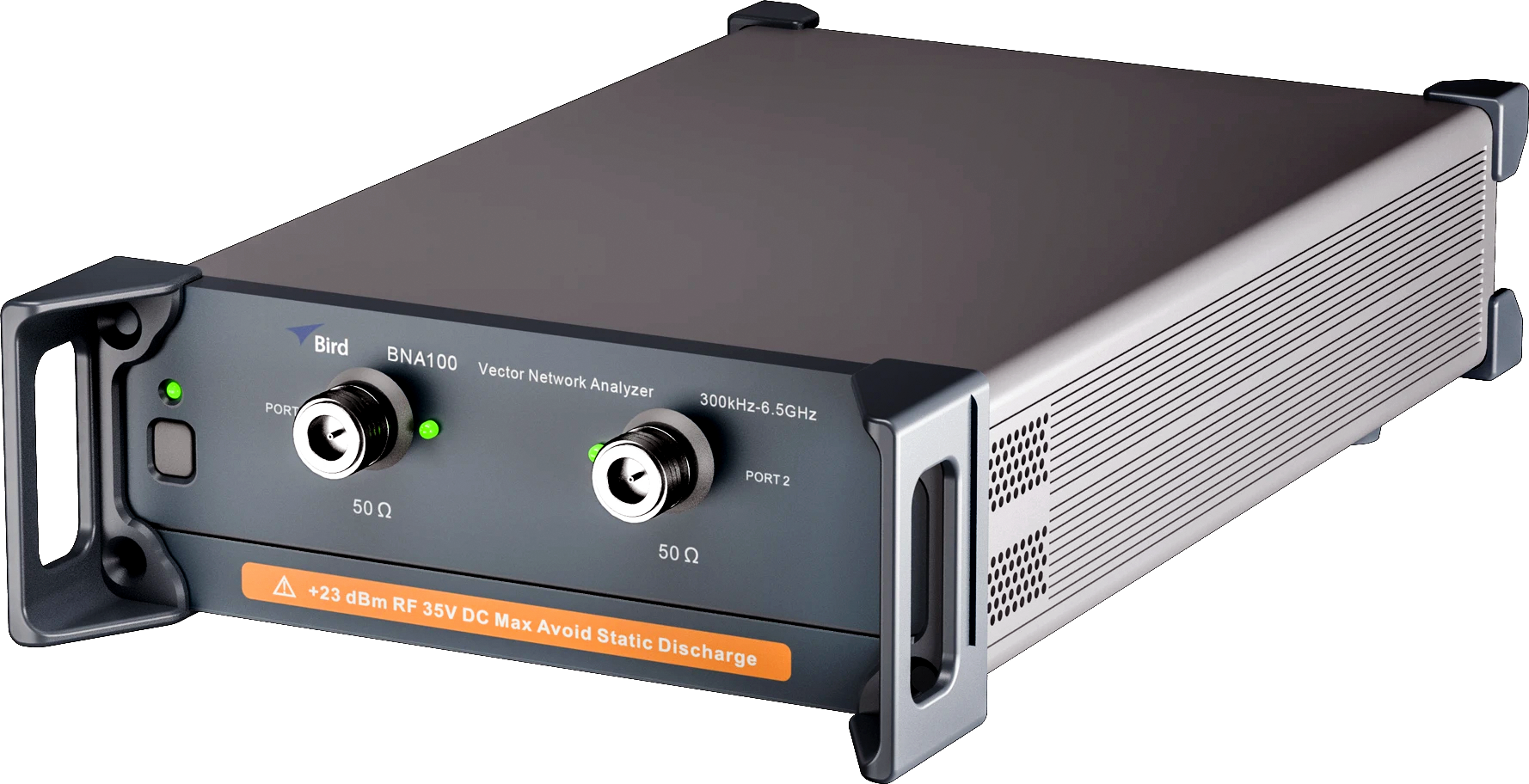

BNA100-Side-View

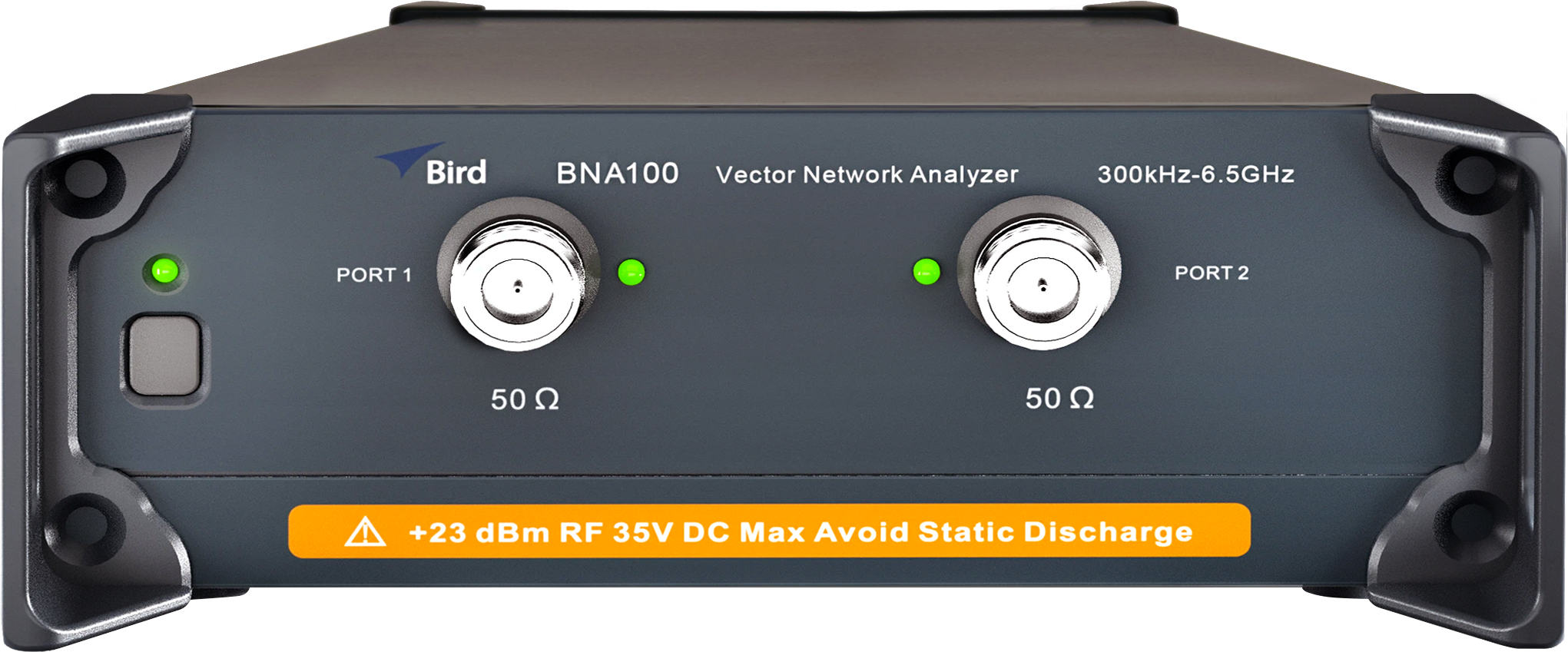

BNA100-VNA-Front-2-Port
BNA100-VNA-Back-2-Port

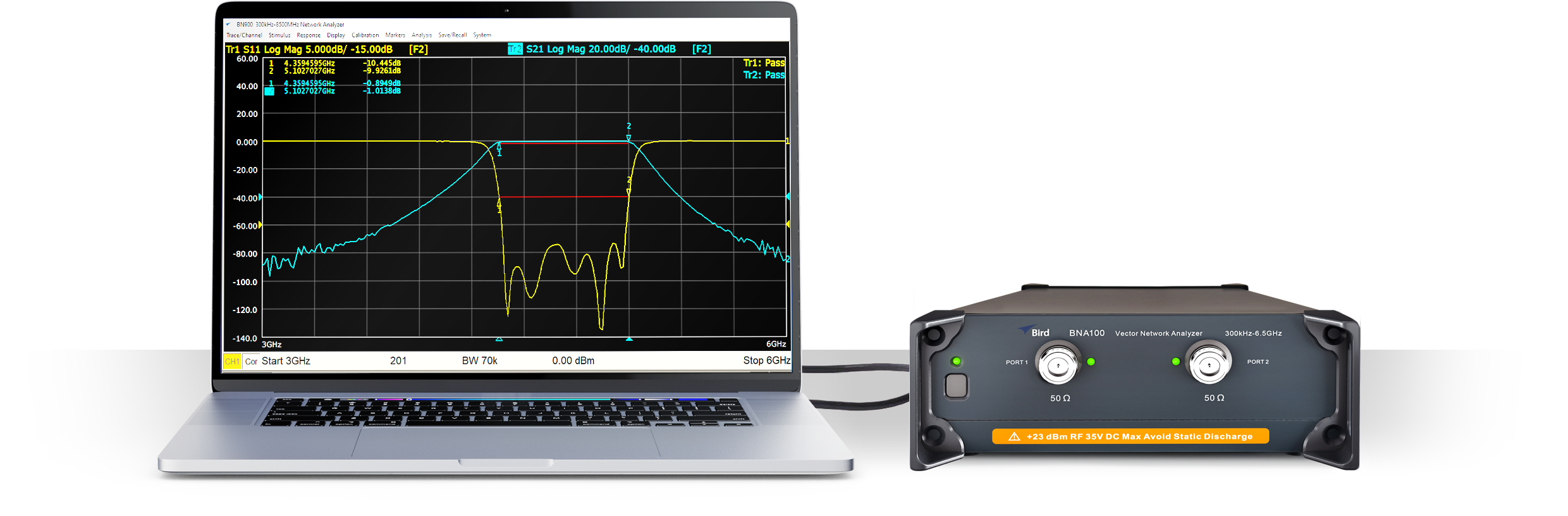

BNA100-vna-configuration
BNA100-Side-View

Accuracy Meets Agility

The BNA100 Series is characterized by its ease-of-use, making it suitable for educational environments where hands-on RF technology training is crucial. For small businesses and budget-conscious engineers, the series offers reliable performance necessary for accurate RF analysis tasks.

Better Dynamic Range

With a 120 dB dynamic range, the BNA100 Series is ideal for filter characterization and other small signal measurements.

Better Output Power

The +10 dBm output power of the BNA100 Series creates a lower noise floor for high-loss DUTS like cables and filters.

Better Frequency Resolution

Narrowband and phase-sensitive devices benefit from the 1 Hz resolution of the BNA100 Series.

BNA100 Series

Model Number
Frequency Range
Measurement Bandwidth
Connectors
Number of Ports
Get Quote
BNA100-2P6G5 Get Quote
{id=1, name='300 kHz to 6.5 GHz', order=0, label='300 kHz to 6.5 GHz'}
{id=1, name='1 Hz to 100 kHz', order=0, label='1 Hz to 100 kHz'}
N(f)
2
Get Quote
BNA100-2P8G5 Get Quote
{id=2, name='300 kHz to 8.5 GHz', order=1, label='300 kHz to 8.5 GHz'}
{id=1, name='1 Hz to 100 kHz', order=0, label='1 Hz to 100 kHz'}
N(f)
2
Get Quote
  Swipe for more

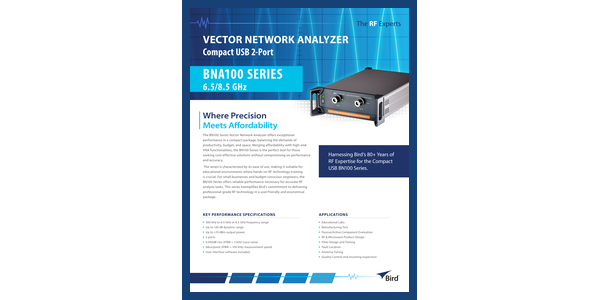

Shop Now Download Datasheet

Ideal for Education

Mindful of the typical budgetary and spatial constraints in educational settings, the BNA100 Series is designed to be both cost-effective and compact, ensuring university labs can incorporate advanced network analysis technology without overextending their resources.

Its user-friendly interface ensures ease of use, making it suitable for a variety of teaching and research applications in RF and electronics engineering. The versatility of the BNA100 Series enables its use in a wide range of academic projects, from elementary circuit analysis to more complex RF research endeavors.

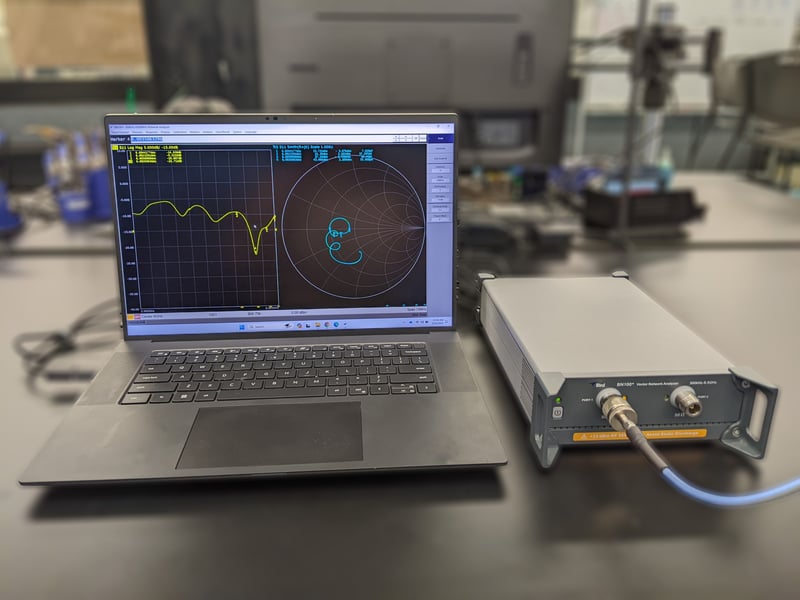

A Laptop running Bird TVNA software displaying 2 graphs connected to a BNA100 sitting on a desk with a lab in the background.
Powerful Software

Flexible Control. Deeper Insight.

All BNA Series VNAs connect via USB—giving you flexible, full-featured control through Bird’s TVNA software. With streamlined navigation and built-in data analysis tools, TVNA makes complex RF testing clear, efficient, and actionable.

  • Visualize results across multiple plots
  • Run a wide range of RF measurements
  • Use specialty limit and time domain analysis options

Own a BNA100?

A factory calibration ensures your BNA100 is working properly and is performing within its specifications. Bird recommends a factory calibration at least once every 3 years.

Get a Calibration Quote Read our App Note on VNA Calibration

BNA100 FAQs

Have more Questions? Get Expert Help >

Is calibration required?

How do I control the BNA100?

Accurate Measurements.
Delivered Fast.

Merging affordability with high-end VNA functionalities typically only found in much larger instruments, the BN100 Series is the perfect tool for those seeking cost-effective solutions without compromising on performance and accuracy. This series exemplifies Bird's commitment to delivering professional-grade RF technology in a user-friendly and economical package.

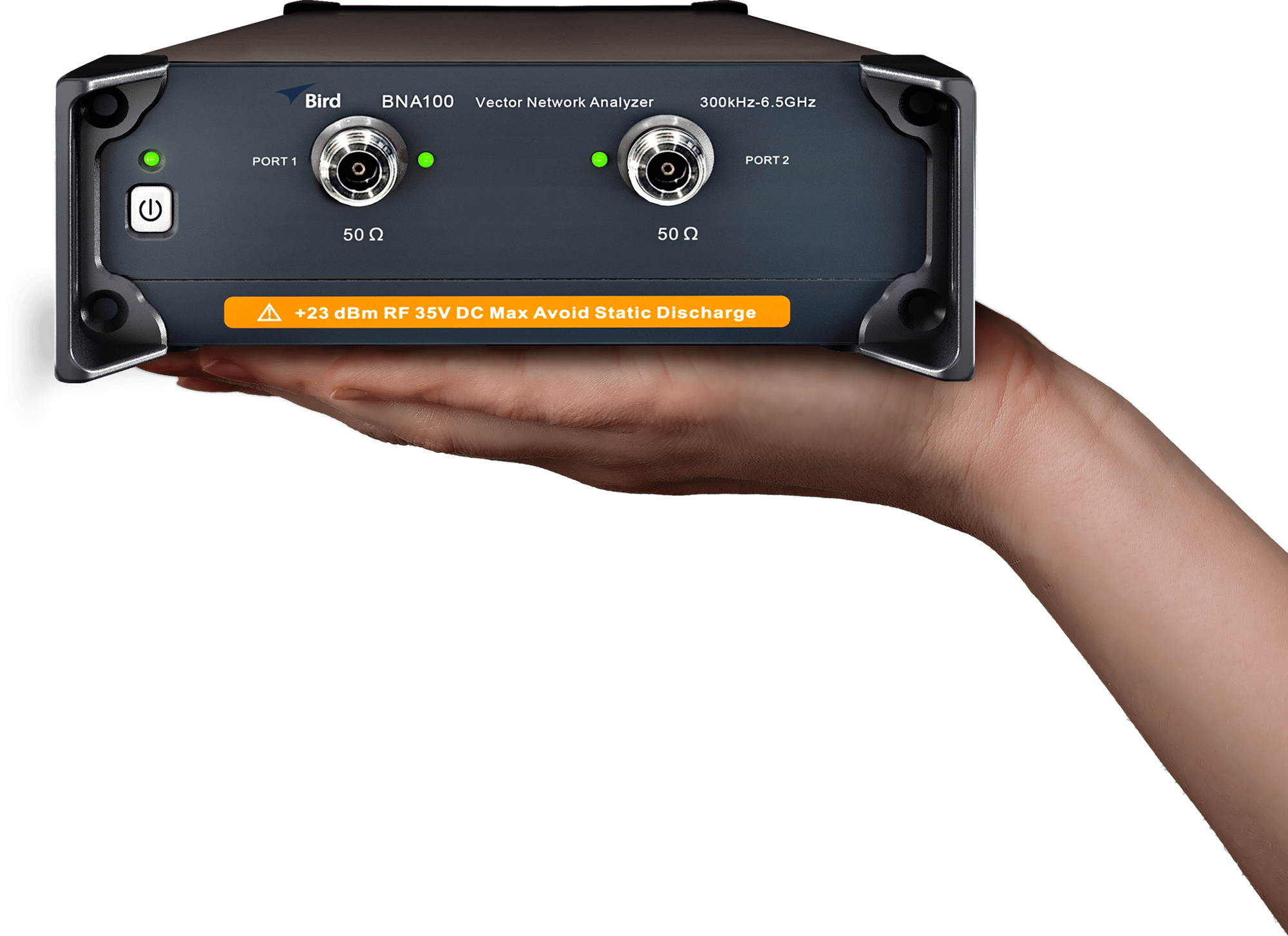

BNA100-Hand
