150 Watt RF Loads

Bird 150 W RF loads provide 50 Ω termination for RF testing, measurement, and equipment protection. Available in conduction-, convection-, and oil-cooled designs, with frequency coverage up to 4 GHz, these loads support laboratory, production, and field applications.

Performance at a Glance

Compare 150 W RF Loads

Technical Specifications at a Glance

Compare the specifications common to each 150 W RF load.
Need help with RF terms? See the RF Glossary>

Product
Power Rating
Dimensions
Weight
Finish
Detailed Specs
150 W
1.1 in x 1.0 in x 1.8 in
(27.9 mm x 25.4 mm x 45.7 mm)
2.2 oz (62.5 g)
Silver Plated
150 W
8.1 in x 4.0 in x 4.0 in
(206 mm x 102 mm x 102 mm)
5.0 lb (2.3 kg)
Black Anodized Aluminum

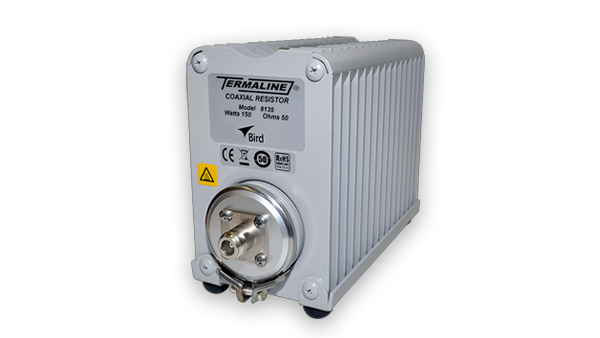

150 W
9.6 in x 4 in x 6.5 in
(243 mm x 102 mm x 164 mm)
6.0 lb (2.7 kg)
Gray Powder Coat
  Swipe for more

Next Step: Compare available configurations to select a model.

Compare 150 W Models

Model Number
VSWR
RF Connector
Buy Now

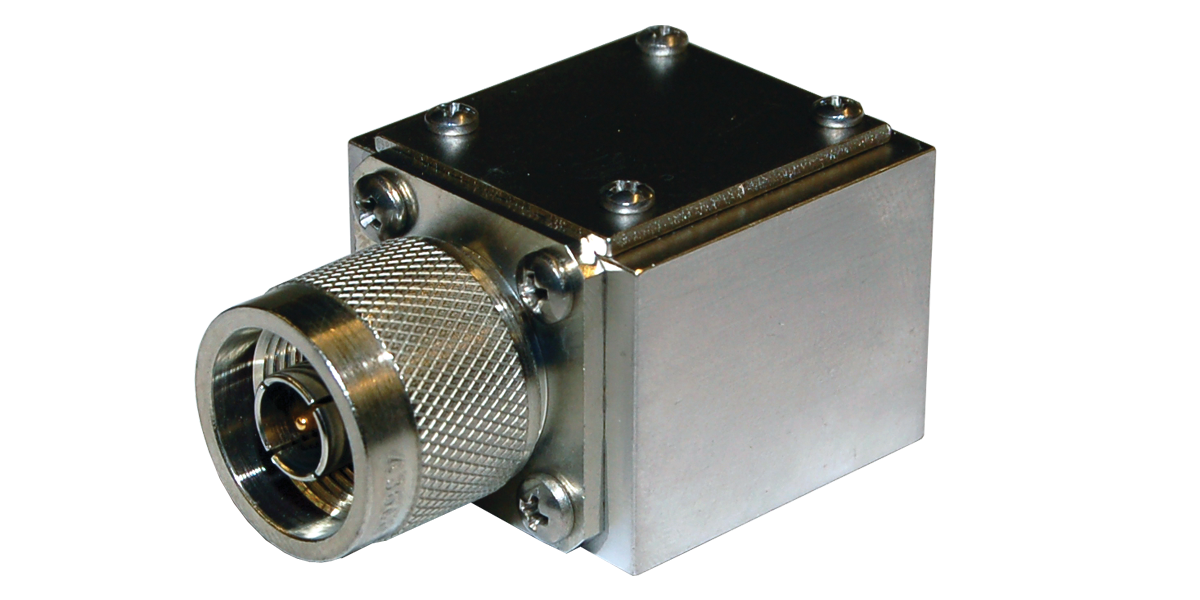

150-CT-FN Buy Now
1.15:1 max (DC to 2 GHz)
1.25:1 max (2 GHz to 3 GHz)
QC Type, N (f)

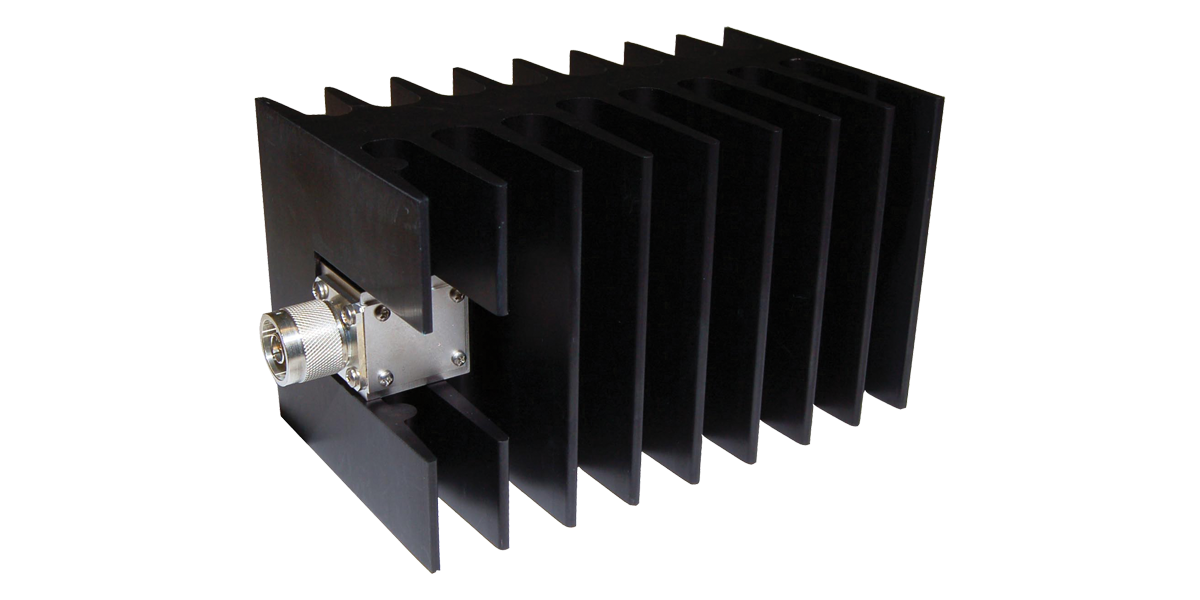

150-ST-FN Buy Now
1.10:1 max (DC to 1 GHz)
1.25:1 max (1 GHz to 3 GHz)
QC Type, N (f)
1.10:1 max (DC to 1 GHz)
1.20:1 max (1 GHz to 2.5 GHz)
1.30:1 max (2.5 GHz to 4 GHz)
QC Type, N (f)
  Swipe for more

Need a Different RF Load?

Whether you need a higher power rating, different connector, or wider frequency range, Bird offers RF loads for a broad range of test and measurement applications.
