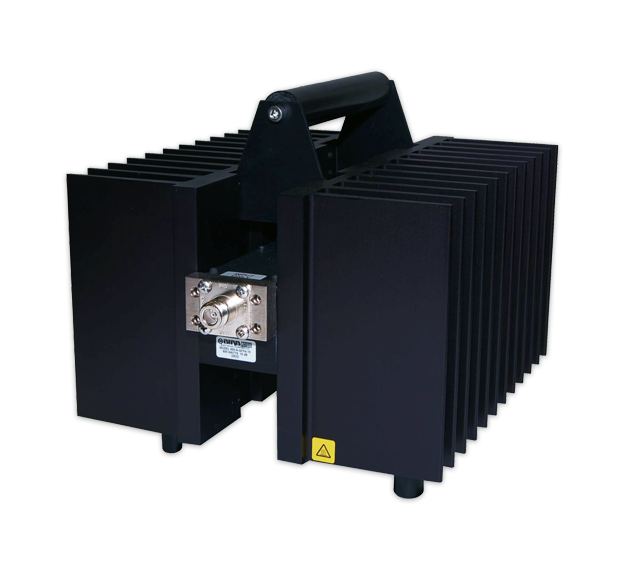

600 Watt RF Attenuators

Bird's 600-A Series RF attenuators provide fixed signal attenuation from DC to 2.4 GHz in a rugged, convection-cooled design. Choose from multiple attenuation values and N-Type connector configurations to meet your RF system requirements.

600w_attenuator_white

Performance at a Glance

600 W Continuous Power

Handles up to 600 W of continuous RF power for high-power RF testing and system applications.

DC to 2.4 GHz Frequency Range

Provides broadband RF attenuation from DC to 2.4 GHz for testing, measurement, and system integration.

Passive Convection Cooling

Dissipates heat through natural airflow with no fans or additional power required.

Next Step: Review the specifications below, then select the 600 W model that best fits your application.

Technical Specifications at a Glance

Review the specifications common to all 600-A Series attenuators.
Need help with RF terms? See the RF Glossary>

Series Name
Directionality
VSWR
Dimensions
Weight
Detailed Specs
600-A Series View Specs ›
Bi-Directional
1.10:1 (DC to 1 GHz)
1.25:1 (1 to 2.4 GHz)
12.7 in x 9.4 in x 9.6 in
(323 mm x 239 mm x 244 mm)
21.5 lb (9.8 kg)
View Specs ›
  Swipe for more

All 600-A models share the specifications above. Select the model below that matches your attenuation and connector requirements.

600 W Model Configurations

Model Number
Frequency Range
Attenuation
RF Connector
Buy Now
600-A-FFN-10 Buy Now
DC to 2.4 GHz
10 dB
N (f) to N (f)
Buy Now
600-A-FFN-20 Buy Now
DC to 2.4 GHz
20 dB
N (f) to N (f)
Buy Now
600-A-FFN-30 Buy Now
DC to 2.4 GHz
30 dB
N (f) to N (f)
Buy Now
600-A-FFN-40 Buy Now
DC to 2.4 GHz
40 dB
N (f) to N (f)
Buy Now
600-A-MFN-10 Buy Now
DC to 2.4 GHz
10 dB
N (m) to N (f)
Buy Now
600-A-MFN-20 Buy Now
DC to 2.4 GHz
20 dB
N (m) to N (f)
Buy Now
600-A-MFN-30 Buy Now
DC to 2.4 GHz
30 dB
N (m) to N (f)
Buy Now
  Swipe for more
← Back To All Attenuators
Need help choosing a 600 W attenuator?

Get Expert Help Selecting the Right Model

If you're deciding between attenuation values, connector configurations, our RF applications engineers can help you determine which 600 W attenuator best fits your system requirements.
