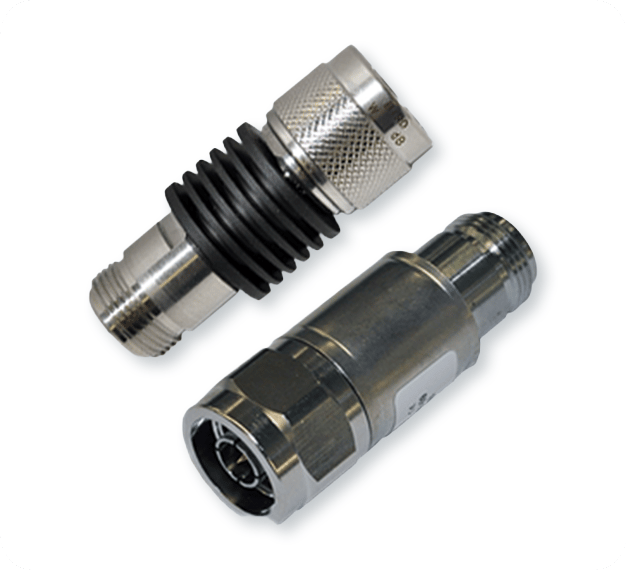

5 Watt RF Attenuators

Bird's 5-A Series RF attenuators provide fixed signal attenuation from DC to 4 GHz in a compact, convection-cooled design. Available in 10, 20, and 30 dB attenuation values with N-Type connector configurations to meet your RF system requirements.

5A-Series_5W_attenuator_wht

Performance at a Glance

5 W Continuous Power

Handles up to 5 W of continuous RF power for low-power RF testing, measurement, and system applications.

Bi-Directional Operation

Supports RF signal flow in either direction, providing flexible placement within test setups and RF systems.

Passive Convection Cooling

Dissipates heat through natural airflow with no fans or additional power required.

Next Step: Review the specifications below, then select the 5 W model that best fits your application.

Technical Specifications at a Glance

Review the specifications common to all 5-A Series attenuators.
Need help with RF terms? See the RF Glossary>

Series Name
Directionality
VSWR
Dimensions
Weight
Detailed Specs
5-A Series View Specs ›
Bi-Directional
1.10:1 (DC to 1 GHz)
1.25:1 (1 to 4 GHz)
2.4 in x 0.8 in Dia.
(61 mm x 21 mm Dia.)
3.1 oz (88 g)
View Specs ›
  Swipe for more

All 5-A models share the specifications above. Select the model below that matches your attenuation and connector requirements.

5 W Model Configurations

Model Number
Frequency Range
Attenuation
RF Connector
Quote/Buy Now
5-A-FFN-10 Buy Now
DC to 4 GHz
10 dB
N (f) to N (f)
Buy Now
5-A-FFN-20 Buy Now
DC to 4 GHz
20 dB
N (f) to N (f)
Buy Now
5-A-FFN-30 Buy Now
DC to 4 GHz
30 dB
N (f) to N (f)
Buy Now
5-A-MFN-10 Buy Now
DC to 4 GHz
10 dB
N (m) to N (f)
Buy Now
5-A-MFN-20 Buy Now
DC to 4 GHz
20 dB
N (m) to N (f)
Buy Now
5-A-MFN-30 Buy Now
DC to 4 GHz
30 dB
N (m) to N (f)
Buy Now
  Swipe for more
← Back To All Attenuators
Need help choosing a 5 W attenuator?

Get Expert Help Selecting the Right Model

If you're deciding between attenuation values, connector configurations, our RF applications engineers can help you determine which 5 W attenuator best fits your system requirements.
