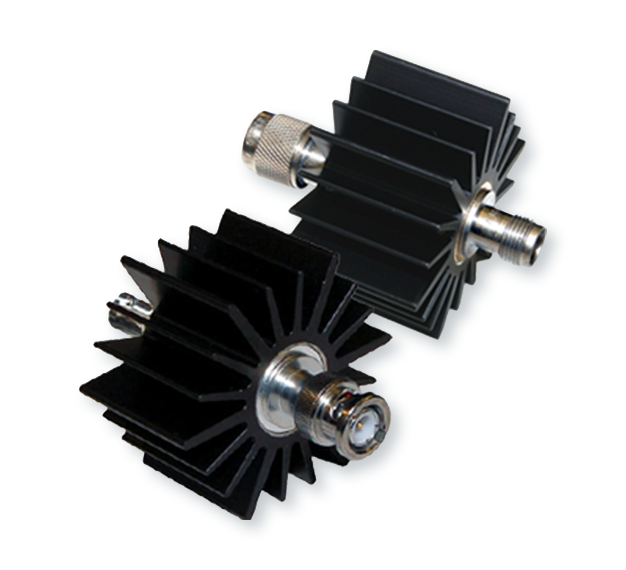

Bird 10-A Series RF Attenuators

10 Watt RF Attenuators

Bird's 10-A Series 10 Watt RF Attenuators provide fixed attenuation for RF testing, signal reduction, equipment protection, and measurement applications. Designed for operation from DC to 4 GHz, the 10-A Series is available in multiple attenuation values and connector configurations.

10-A-Series_10W_Attenuators_wht

Key Benefits of the Bird 10-A Series

Select a 10-A Series Attenuator

Find the right RF attenuator for your test setup.

Model Number
Attenuation
Frequency Range
RF Connector
Quote/Buy Now
10-A-FFN-10 Buy Now
10 dB
DC to 4 GHz
N(f) to N(f)
10-A-FFN-20 Buy Now
20 dB
DC to 4 GHz
N(f) to N(f)
10-A-FFN-30 Buy Now
30 dB
DC to 4 GHz
N(f) to N(f)
10-A-MFN-10 Buy Now
10 dB
DC to 4 GHz
N(m) to N(f)
10-A-MFN-20 Buy Now
20 dB
DC to 4 GHz
N(m) to N(f)
10-A-MFN-30 Buy Now
30 dB
DC to 4 GHz
N(m) to N(f)
  Swipe for more

Key Specifications at a Glance

Specification

Power Rating

Frequency Range

Cooling

Connector Type

Attenuation Values

Value

10 Watts

DC–4 GHz

Convection

N-Type

Multiple Options

Need Help Selecting an Attenuator?

Not sure which attenuation value or configuration is right for your application? Bird's RF specialists can help identify the best solution for your requirements.
