4431 Wattmeter

Power Measurement with Built-In Signal Sampling

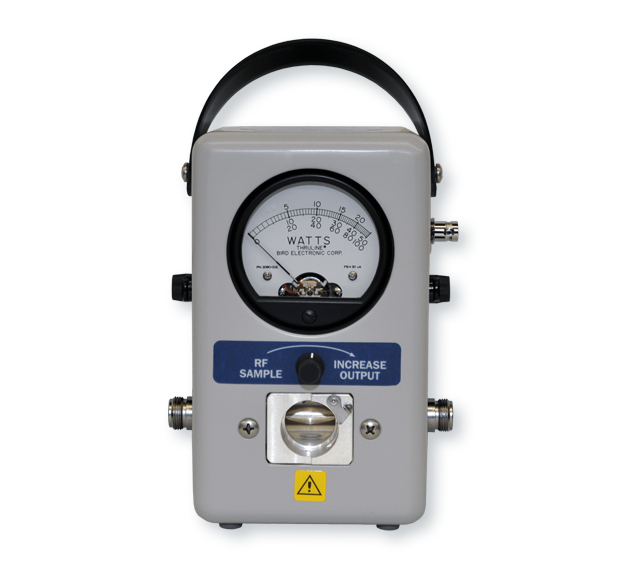

The Bird Model 4431 is a portable, analog wattmeter based on the trusted Model 43—enhanced with an integrated RF signal sampling port. It provides average power measurement using Bird’s interchangeable plug-in elements, while also offering a low-power sampled output via a BNC connector.

This lets technicians monitor frequency, modulation, or harmonics using external equipment without disturbing the signal path. Ideal for lab work, tuning, and system verification.

Buy Now View Manual

Why Choose the 4431?

Measure and Monitor

Read average RF power and monitor the live signal—simultaneously, from one instrument.

Adjustable Sample Output

Use the front-panel control to set RF sample strength for counters, analyzers, or scopes

Built on the Model 43

Same rugged build, analog display, and element compatibility—now with added signal visibility.

How It Works

The Model 4431 uses a directional coupler and analog meter movement to measure average forward or reflected power.

In addition, an internal RF probe taps the signal and routes a low-power sample to a BNC connector on the right side of the meter. The technician can adjust output level using the front-mounted control knob, making it easy to connect to and protect external test equipment.

Get Expert Help

Monitor Live RF Without Interrupting the Signal Path

Connect directly to a spectrum analyzer, frequency counter, or oscilloscope

Safely observe frequency, modulation, or harmonics while measuring power

Use the front-panel knob to adjust sample level for test equipment input

4431 Model Specification

Model Number

4431 Buy Now

2 MHz to 1.2 GHz

5 kW max. 2 to 30 MHz
1 kW max. 30 to 1000 MHz

± 5% of full scale

Buy Now

Swipe for more

FAQs

What is the RF sample port on the 4431 used for?

Can I adjust the strength of the sampled signal?

Does the 4431 measure RF power like the Model 43?
