8201

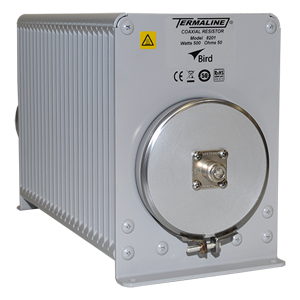

8201, 500 Watt Oil-Cooled RF Termination
8201

500 Watt, Oil-Cooled RF Termination


8201, RF Load is a portable, self-contained general purpose 50 ohm coaxial transmission line termination requiring no outside power source or additional equipment. It provides accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 2.5 GHz.

Features
  • Rugged portable Bench load for medium power base station RF testing up to 2.5 GHz
  • Oil-assisted convection cooling for safe, continuous operation up to 500W full rated power
  • Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
  • Low-profile housing with handle for trouble-free operation in the most demanding environments
product specifications:
Item No
8201
Item Name
500 Watt, Oil-Cooled Terminations
Power Rating
500 W continuous
Frequency Range and VSWR
DC to 1 GHz @ 1.1 max.
1 GHz to 2.5 GHz @ 1.25 max.
Temperture Range
-40 to +45 °C
Coolant
0.9 gal. (3.42 liters) Refined Mineral Oil
Product Type
Oil-Cooled
Operating Position
Horizontal Only
Connectors
N (F)
Finish
Gray Powder Coat
Dimensions
16-13/16" x 8-1/2" x 5-15/16" (L x H x W)
427 x 216 x 151 mm
Weight
21 lbs. (9.5 kg)
