Channel Power Monitor

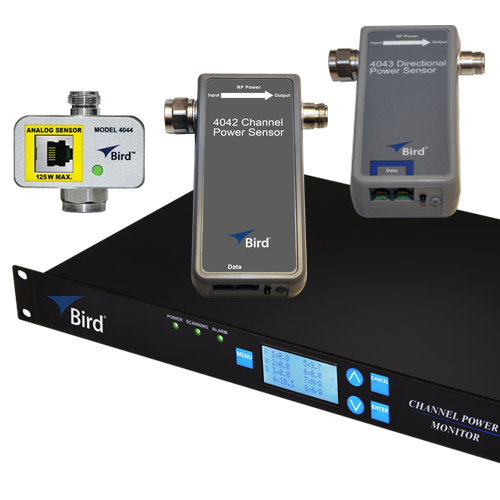

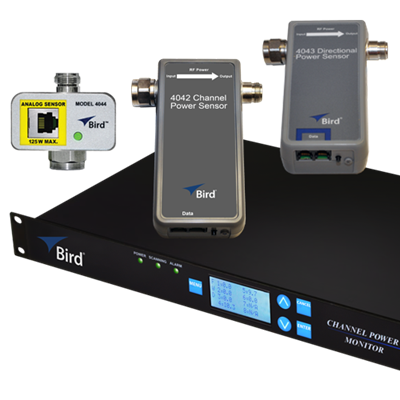

CPM Series, Channel Power Monitor System
Channel Power Monitor

Radio System Health Monitoring Solutions



Solutions are available for the entire range of Land Mobile Radio frequencies.

Download the CPM Solutions Brief to learn more!

Be confident of the status of each individual component in a radio system with effortless monitoring from a computer, tablet or mobile device.

Comprised of a central processor and a variety of sensors, the Bird CPM can be setup to monitor radio performance, combiner loss, and antenna/feedline characteristics providing continuous information on the health of each component it monitors.

Easy system access is available from any computer, tablet or phone on your network with the CPM-hosted web page. This allows for set up of alarms for failure conditions such as high or low power, or poor antenna VSWR. The monitor includes both software and hard contact alarms and can be configured to send SNMP Trap messages for emergency condition alerts. Data logging is standard and takes reliability one step further by enabling you to see degraded performance before it becomes an emergency.

Product Features
  • Power monitor display and sensors allow you to build a system around your needs.
  • Monitor up to 16 non-directional and 16 directional sensors simultaneously.
  • Measures forward, reflected, composite and individual channel power as well as antenna system VSWR.
  • Monitoring of the system is accomplished via interface with the front panel or accessed through the built in web server and web page.
  • Configurable alarming for high and low level power and high antenna VSWR, utilizing hard contact and SNMP formats.
  • Standard Push-to-Talk (PTT) compatibility.
CPM Series, Channel Power Monitor System
Channel Power Monitor
Check up to five products to compare
Item No
Item Name
Measurement Range FWD Power
Measurement Range RFL Power
Measurement Accuracy
Channel Power Sensor, RJ-25
10W to 500 W
1 W to 50 W
±5% of reading
Directional Power Sensor, RJ-25
25 to 500 W
2.5 W to 50 W(LP) - Low Power Version
2.5 to 50 W
.25 W to 5 W(LP) - Low Power Version
± 5% of reading
Non-Directional Power Sensor
2.5 W to 125 W
N/A
± 5% of reading
Ethernet, Power Sensor Monitor
10 W to 500 W
1 W to 50 W
± 5% of reading
Ethernet, Directional Power Sensor Monitor
25 to 500 W 2.5 W to 50 W(LP) - Low Power Version
2.5 to 50 W .25 W to 5 W(LP) - Low Power Version
± 5% of reading
Channel Power Monitor Display
N/A
N/A
N/A
