150-WT-FN-5R00
150-WT-FN-xR00 Series, Calibrated Mismatch RF Loads

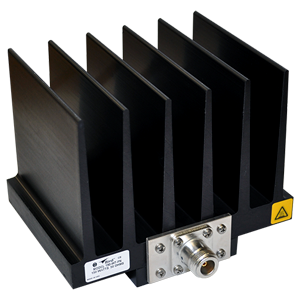

150-WT-FN-5R00

150 Watt, DC - 1 GHz (5.00:1) Mismatch RF Termination


Bird's 150-WT-FN-5R00, Calibrated Mismatch RF Loads is world renowned for it's high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.

Features
  • Calibrated VSWR Mismatch
  • Multi-Octave Bandwidth
  • Ideal for TX or Amplifier Testing
  • Other VSWR values available
150-WT-FN-xR00 Series, Calibrated Mismatch RF Loads
150-WT-FN-5R00
product specifications:
Item No
150-WT-FN-5R00
Item Name
150 Watt, 5.00:1, Mismatch Load
Power Rating
150 Watts Avg. @ 25°C Ambient
Frequency Range
DC to 1.0 GHz
Mismatch Value
Product Type
Dry (Convection-Cooled)
Operating Position
Horizontal (Fins Up) or Vertically
Connectors
N (F), Tri-Alloy Plated
Finish
Aluminum, Black Anodized
Dimensions
4.85" X 5.40" X 4.30" approx. (L x W x H)
Weight
2.5 lbs.
