50-T Series
50-NT Series, 50 Watt, Convection-Cooled Dry Terminations
50-T Series

50-T Series, 50 Watt, Convection-Cooled Dry Terminations
Bird's RF terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
For Aluminum Nitride (BeO free) See 50-NT-MN

  • Wide variety of connectors
  • Compact size, easily transportable. Rugged Reliability provides years of trouble free use
  • Optionally available as a Calibrated Mismatch Load See 50-T-MN-3R00
  • Optionally available with Aluminum Nitride ceramic
50-NT Series, 50 Watt, Convection-Cooled Dry Terminations
50-T Series
product specifications:
Item No
50-T Series
Item Name
50 Watt, Convection-Cooled Dry Terminations
Power Rating
50 W
Peak Power
Frequency Range
Frequency Range and VSWR
DC to 1 GHz @ 1.10:1 max
1 GHz to 4 GHz @ 1.25:1 max.
VSWR
Temperture Range
-40 to +40 °C
Product Type
Dry (Convection-Cooled)
Operating Position
Any
Body
Aluminum
Connectors
N, BNC, TNC, SMA, 7/16 DIN, MD
Finish
Black Anodized, Silver or Tri-Alloy Plated Connectors
Dimensions
(with N-type connector): 4.7" L x 2.3" Dia.
(119.4 x 58.50 mm)
Weight
1.13 lbs. (0.52 kg)
compatible devices:

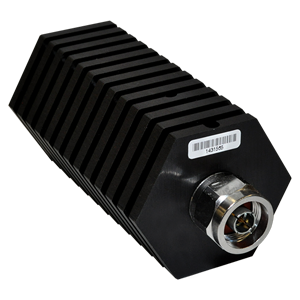

50-T-MN-3R00
50 Watt, 3.0:1, Mismatch Load
