300-CT Series

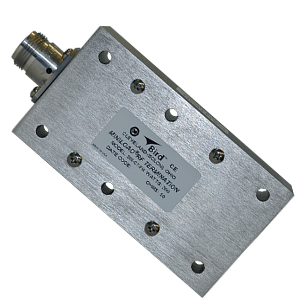

300-CT Series, 300 Watt - Convection-Cooled Dry Terminations
300-CT Series

300-CT Series, 300 Watt - Conduction-Cooled Dry Terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.

  • Rugged Reliability provides years of trouble free use
  • Conducts heat to user-supplied heat sink
  • Compact size, lightweight
  • Easy to Use
300-CT Series, 300 Watt - Convection-Cooled Dry Terminations
300-CT Series
product specifications:
Item No
300-CT Series
Item Name
300 Watt, Conduction-Cooled Dry Terminations
Power Rating
300 Watts avg. - Based on Max. Housing Temp. of 100 °C or less
Frequency Range and VSWR
DC to 1GHz @ 1.10:1 max.
1GHz to 3 GHz @ 1.25:1 Max.
Impedance Ω
50
Temperture Range
Coolant
Dry (Conduction-Cooled)
Product Type
Dry (Conduction-Cooled)
Operating Position
Connectors
N, BNC, TNC, 7/16 DIN
Finish
Silver Plated
Dimensions
4.4" x 2.0" x 1.03" (L x W x H)
111.76 x 50.8 x 26.16 mm, includes connectors
Weight
12 oz. (340 g)
