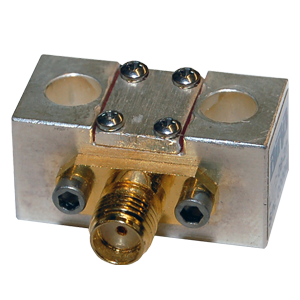

25-CT Series, 25 Watt, Conduction-Cooled Dry Terminations
25-CT Series

25-CT Series, 25 Watt, Conduction-Cooled Dry Terminations
Bird's RF terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.

  • Rugged Reliability provides years of trouble free use
  • Conducts heat to user-supplied heat sink
  • Compact size, lightweight
  • Easy to Use
25-CT Series, 25 Watt, Conduction-Cooled Dry Terminations
25-CT Series
product specifications:
Item No
25-CT Series
Item Name
25 Watt, Conduction-Cooled Dry Terminations
Power Rating
25 W max. @ 100°C flange temperature, derated to 0 W @ 150°C
Frequency Range and VSWR
DC - 1 GHz @ 1.15:1 max.
1 GHz - 3 GHz @ 1.25:1 max.
Product Type
Dry (Conduction-Cooled)
Operating Position
Any
Connectors
SMA (M/F)
Base to Connector Center
0.25" (6.4 mm)
Mounting Centers
0.614" (15.6 mm)
Finish
Silver or Tri-Alloy Plated
Dimensions
0.9" x 1.0" x 0.5" (L x W x H)
(22.9 x 25.4 x 12.7 mm)
Weight
0.4 oz. (11.4 g)
