2-T Series, 2 Watt, Convection-Cooled Dry Terminations
2-T Series

2-T Series, 2 Watt, Convection-Cooled Dry Terminations
Bird's RF terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.

For Aluminum Nitride (BeO free) see models 2-NT.

For Calibrated Mismatch Loads, see Related Products
  • Wide variety of connectors
  • Compact size, easily transportable. Optionally available as a Calibrated Mismatch Load
  • Optionally available with Aluminum Nitride ceramic
product specifications:
Item No
2-T Series
Item Name
2 Watt, Convection-Cooled Dry Terminations
Power Rating
2 W
Frequency Range and VSWR
DC - 1 GHz @ 1.10:1 max.
1 GHz - 6 GHz @ 1.25:1 max. (N-Type)
1 GHz at 4 GHz at 1.25:1 max. (BNC and TNC)
Temperture Range
-40 to +40 °C
Product Type
Dry (Convection-Cooled)
Operating Position
Any
Connectors
N, BNC, TNC, 7/16
Finish
Silver or Tri-Alloy Plated
Dimensions
1.6" L x 0.8" Dia., with N (M) connector
(40.7 x 20.4 mm)
Weight
1.9 oz. (55 g)
compatible devices:

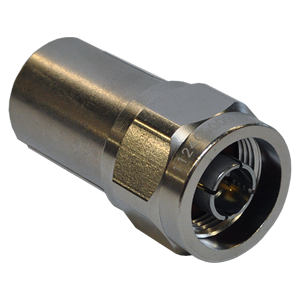

2-T-MN-1R50
2 Watt, Mismatch Load
